XYZ positioning system 782498:001.26
linearball screwlinear motor-driven

XYZ positioning system - 782498:001.26 - Steinmeyer Holding GmbH - linear / ball screw / linear motor-driven

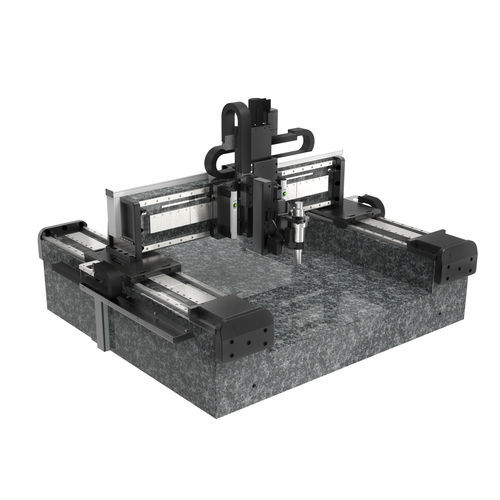

XYZ positioning system - 782498:001.26 - Steinmeyer Holding GmbH - linear / ball screw / linear motor-driven
XYZ positioning system - 782498:001.26 - Steinmeyer Holding GmbH - linear / ball screw / linear motor-driven - image - 2
XYZ positioning system - 782498:001.26 - Steinmeyer Holding GmbH - linear / ball screw / linear motor-driven - image - 3
XYZ positioning system - 782498:001.26 - Steinmeyer Holding GmbH - linear / ball screw / linear motor-driven - image - 4
XYZ positioning system - 782498:001.26 - Steinmeyer Holding GmbH - linear / ball screw / linear motor-driven - image - 5
XYZ positioning system - 782498:001.26 - Steinmeyer Holding GmbH - linear / ball screw / linear motor-driven - image - 6
XYZ positioning system - 782498:001.26 - Steinmeyer Holding GmbH - linear / ball screw / linear motor-driven - image - 7
Add to favorites
Compare this product


Characteristics

Number of axes
XYZ
Features
linear
Other characteristics
ball screw, linear motor-driven, servo-driven, high-speed, high-accuracy
Repeatability

Min.: 0.2 µm

Max.: 2.5 µm

Load

25 kg
(55.12 lb)

Stroke

Min.: 200 mm
(7.87 in)

Max.: 700 mm
(27.56 in)

Speed

Min.: 50 mm/s

Max.: 1,000 mm/s

Description

XYZ Gantry System für 3D Automatisierung Customizable • Ideal for automated high-throughput applications by large travels of 700 x 700 x 200 mm • Highly dynamic, fast processing of samples due to speeds of up to 1000 mm/s • High-precision positioning with repeatability down to 0.3 µm • Outstanding stability for high reproducibility and resolutions This 3-axis positioning system can be flexibly adapted to production and inspection processes for various applications. The customized processing or measuring head on the Z-axis moves overhead above the sample carrier. Specifications: - Stroke: 700 x 700 x 200 mm - Z-axe for process heads up to 103 kg - Repeatability: 0.2 – ± 2.5 µm - Speed: 500 - 1000 mm (XY) / 50 - 100 mm (Z) - Max. load: 250 N (X) / 3100 N (Y1, Y2) / 1010 N (Z) - Drive: linear motor (Iron Core) | Ball Screw, AC-Servo (Z) - Feedback: linear scale, motor encoder - Motion Controller: FMC-250/280, FMC-400/450, ACS, PLC integration Customized options: - Adaptation to customer-specific production or measuring head - Customization of travels up to 2000 mm for the production area - Safety enclosure and different base plates - Wipeable, chemical resistant surfaces - Control in Z manual or motorized - Clean room versions ISO 14644-1 (up to class 1 on request) - Ready-to-use control with pre-configured controller incl. sample software

Catalogs

No catalogs are available for this product.

See all of Steinmeyer Holding GmbH‘s catalogs
