XYZ positioning system 782350:003.26
linearball screwwith DC motor

XYZ positioning system - 782350:003.26 - Steinmeyer Holding GmbH - linear / ball screw / with DC motor
XYZ positioning system - 782350:003.26 - Steinmeyer Holding GmbH - linear / ball screw / with DC motor
XYZ positioning system - 782350:003.26 - Steinmeyer Holding GmbH - linear / ball screw / with DC motor - image - 2
XYZ positioning system - 782350:003.26 - Steinmeyer Holding GmbH - linear / ball screw / with DC motor - image - 3
XYZ positioning system - 782350:003.26 - Steinmeyer Holding GmbH - linear / ball screw / with DC motor - image - 4
XYZ positioning system - 782350:003.26 - Steinmeyer Holding GmbH - linear / ball screw / with DC motor - image - 5
XYZ positioning system - 782350:003.26 - Steinmeyer Holding GmbH - linear / ball screw / with DC motor - image - 6
Add to favorites
Compare this product


Characteristics

Number of axes
XYZ
Features
linear
Other characteristics
ball screw, with DC motor, linear motor-driven, high-speed, high-accuracy
Repeatability

Max.: 0.4 µm

Min.: 0.3 µm

Load

15 kg
(33.07 lb)

Stroke

Max.: 1,000 mm
(39.37 in)

Min.: 200 mm
(7.87 in)

Speed

Max.: 2,420 mm/s

Min.: 30 mm/s

Description

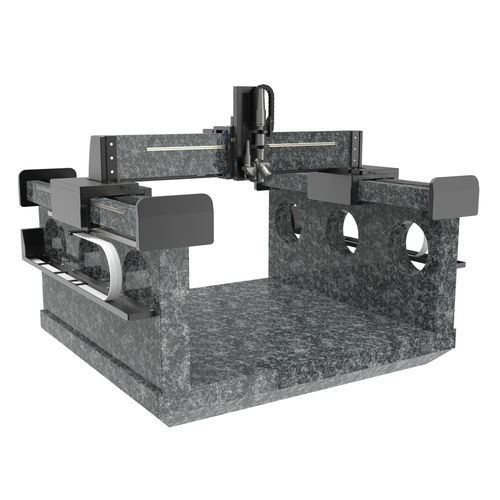

XYZ gantry for inspection Customizable • Ideal for high-precision inspection of large parts up to 450 x 1000 x 1000 mm • Resolutions in the nanometer range due to exceptionally high rigidity • Individual adaptation to customer-specific microscope, camera or sensor • Outstanding high throughput at speeds up to 2420 mm/s • Low maintenance and flexible 24/7 operation with air bearing under variable parameters This XYZ positioning system is suitable for high-precision measurement of large and high samples over 450 x 1000 x 1000 mm. It is set up at ground level to allow loading with lift trucks.A custom microscope, camera or sensor can be attached to the Z-axis to measure the sample with an XYZ overhead movement. This enables high-resolution imaging in the nanometer range as well as numerous measurement functions for 2D and 3D imaging. Specifications: - Stroke: 700 x 700 x 700 x 200 mm - Z stage for process heads up to 15 kg - Repeatability: 0.3 – ± 0.4 µm - Speed: 1210 - 2420 mm (XY) / 30 - 60 mm (Z) - Max. load: 100 N (X) / 500 N (Y) / 150 N (Z) - Drive: linear motor (ironless), air bearing (XY) | Ball Screw, DC-Motor, cross roller bearings (Z) - Feedback: linear scale - Motion Controller: FMC-250/280, FMC-400/450, ACS, PLC integration Customized options: - Adaptation of travels, length combination, cabling and motion - Customization and integration into the overall customer-specific application - Ready-to-use control with pre-configured controller incl. sample software
