XYZ positioning system 782300:171.26
linearlinear motor-drivenprofiled rail

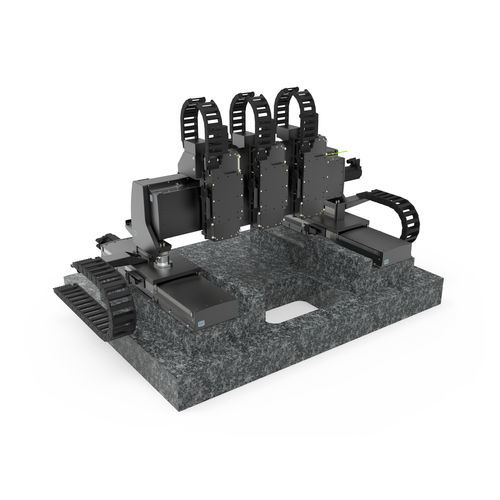

XYZ positioning system - 782300:171.26 - Steinmeyer Holding GmbH - linear / linear motor-driven / profiled rail
XYZ positioning system - 782300:171.26 - Steinmeyer Holding GmbH - linear / linear motor-driven / profiled rail
XYZ positioning system - 782300:171.26 - Steinmeyer Holding GmbH - linear / linear motor-driven / profiled rail - image - 2
XYZ positioning system - 782300:171.26 - Steinmeyer Holding GmbH - linear / linear motor-driven / profiled rail - image - 3
Add to favorites
Compare this product


Characteristics

Number of axes
XYZ
Features
linear
Other characteristics
linear motor-driven, precision, profiled rail, high-speed
Repeatability

Min.: 0.4 µm

Max.: 0.5 µm

Stroke

Min.: 100 mm
(3.94 in)

Max.: 700 mm
(27.56 in)

Speed

Min.: 470 mm/s

Max.: 2,000 mm/s

Description

XYZ Multi-axis gantry system Customizable • Ideal for integrated inline quality control, high-speed pick-and-place tasks and combined applications • Three freely configurable axes on the crosshead for individual all overhead applications • High throughput due to travels of 500 x 700 x 100 mm, expandable to 1000 mm • Outstanding high repeatability up to 0.4 µm • Uncoupling between the gantry axes and the crosshead for easy controllability via motor encoders and avoidance of overdetermination This versatile adaptable gantry for overhead applications is freely configurable in number of axes, size and drive from the standard stages of the PLT series. Three or more customer-specific processing heads, cameras, sensors, etc. can be adapted to the enhanced traverse. Specifications: - Stroke: 500 x 700 x 100 mm - Repeatability: 0.4 – ± 0.5 µm - Speed: 790 - 1580 mm (X) / 1000-2000 mm (Y) / 470 - 940 mm (Z) - Max. load: 1010 N (XY)/ 260 N (Z) - Drive: linear motor (iron core), profile rail (XYZ) - Feedback: linear scale - Motion Controller: FMC-Serie, ACS, SPS-Integration Customized options: - Expansion with additional Z-axes for integration of further processing heads, cameras or sensors - Adaptation of the traverse paths for the production area - Safety enclosure - Base plate made of granite, aluminum or other materials - Versions for clean room ISO 14644-1 (up to class 1 on request) - Integration into the customer specific overall application - Bus-capable fully interpolating industrial controller for integration into almost any automation environment
