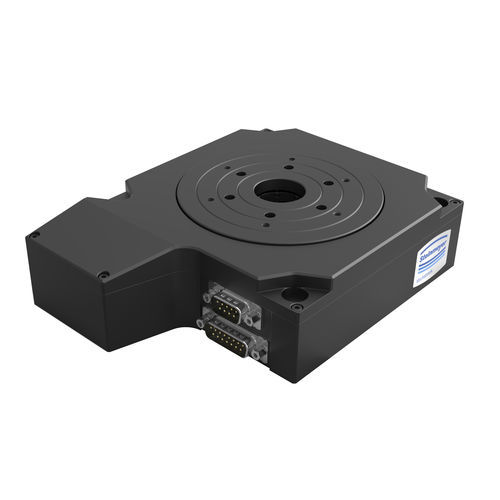

Rotary positioning stage DT130

motorized1-axisprecision

DT130 Rotary stage with high resolution: The DT130 rotary stage has been designed to precisely position small loads. The worm gear drive guarantees very high selfretaining forces in the desired position and - due to the high resolution - simultaneous high repeatability. Easy to control and combine: The DT130 is available with stepper motor oder DC motor and is easy to control with our innovative FMC series motion controllers. In addition, the rotary stage can be combined with the matching MT130 micro stage to form complex multi-axis systems. Optimum for measurement engineering: The operating parameters of the DT130 rotary stage correspond with the special requirements in applications such as measurement engineering. It is also ideal for use in applications in laser machining, photonics or in research and development. Technical Data: • Travel: nx360 deg unidirectional: ± 0.003 deg bidirectional: ± 0.005 deg • Accuracy: ±0.09 deg • Excentric runout: ±5 µm • Positioning speed: 90 deg/s • Max. acceleration: 900 deg/2 • Max. load Fz: 40 N • Max. load torque Mz: 0.5 Nm • Max. load torque Mx,y: 3 Nm
