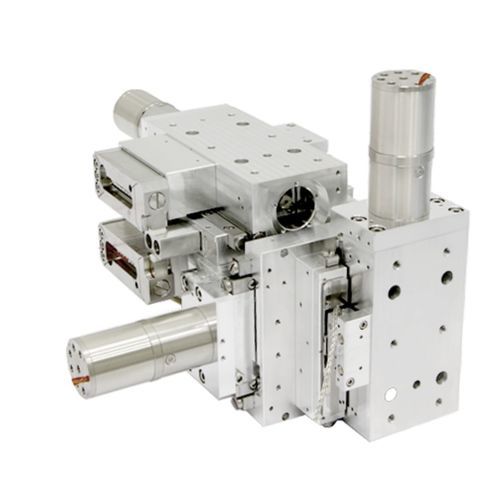

Linear positioning stage 2LA95-LA105electric3-axisprecision
Add to favorites
Compare this product
Characteristics
- Orientation
- linear
- Type
- electric
- Number of axes
- 3-axis
- Other characteristics
- precision, industrial, for wafer handling
- Stroke
Min.: 1 mm
(0.039 in)Max.: 7 mm
(0.276 in)- Speed
Min.: 1 mm/s
Max.: 3.6 mm/s
- Repeatability
Min.: 0.4 µm
Max.: 1 µm
- Load
Min.: 1.9 kg
(4.19 lb)Max.: 2.9 kg
(6.39 lb)
Description
2LA95-LA105
XYZ-System mit Piezobremse (UHV)
Three coordinate manipulator with stroke of 5 x 20 x 10 mm and loads up to 2 kg. Dry running, piezo brake, lead screw, stepper motor. Includes measuring system for feedback of the actual position. It is ideally designed for applications in optics under laboratory conditions in a vacuum ranges up to 10E-9 mbar.
Technical data:
Standard System - LA95 LA95 LA105
____________________________________________________
Travel - [mm] 10 5 20
____________________________________________________
Positioning speed - [mm/s] 25 10 25
____________________________________________________
Max. Speed - [mm/s] 50 20 50
____________________________________________________
Weight - [kg] 7
