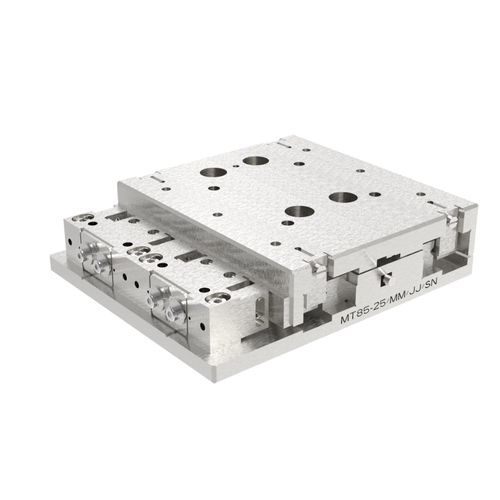

Linear positioning stage MT85piezoelectric1-axisprecision
Add to favorites
Compare this product
Characteristics
- Orientation
- linear
- Type
- piezoelectric
- Number of axes
- 1-axis
- Other characteristics
- precision, industrial, for wafer handling
- Stroke
Max.: 50 mm
(1.969 in)Min.: 25 mm
(0.984 in)- Speed
Max.: 5 mm/s
Min.: 2.5 mm/s
- Repeatability
Max.: 0.3 µm
Min.: 0.2 µm
- Load
Max.: 15 kg
(33.07 lb)Min.: 6 kg
(13.23 lb)
Description
MDT85-PM
Vacuum / Cleanroom linear stages and axes
• - Cleanroom: variants up to class ISO 6 (higher on request)
• - Vacuum: all HV / UHV ranges
• - Beam: UV / DUV / EUV
• - Lubrication: liquid up to 10-8 / dry up to 10-11 mbar
• - Max. Bake-out temperature: 140°C
Options:
• - With or without aperture (Ø 25 mm)
• - Stackable to a compact 3-axis positioning system
• - Magnetism: magnetic, low-magnet, magnet-free
• - EUV lubrication, flour-free / PFAS-free UHV lubrication
• - Customized development with 3D design, prototypes, series production
Fields of application
Positioning in small dimensions in the EUV cleanroom e.g. camera, microscope / sensor (AFM, WLI), transillumination measurements, microscopy positioning, setup of space-saving XYZ multi-axis systems, manipulator for industry and research, compact cleanroom positioning systems, semiconductor alignment, beam inspection
