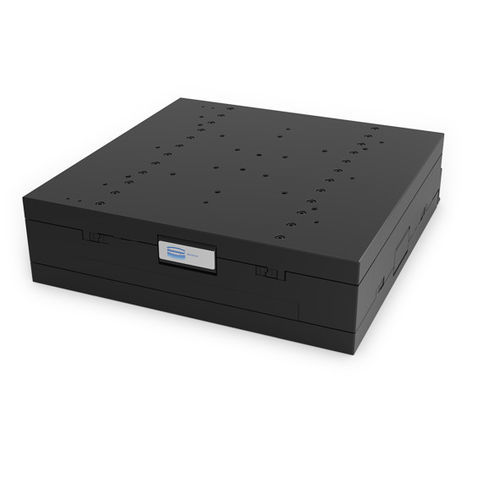

XY stage KT305-EDLMlinear motor-driven2-axisprecision
Add to favorites
Compare this product
Characteristics
- Orientation
- XY
- Type
- linear motor-driven
- Number of axes
- 2-axis
- Other characteristics
- precision, compact, for microscopes, high-speed, measurement
- Stroke
210 mm
(8.268 in)- Speed
150 mm/s
Description
Precision XY scanning stage with 210 mm travel, 0.3 µm repeatability, 80 N load
Scanning stage for highly dynamic applications
This compact XY stage was specially designed as a fast scanning stage for various measurement applications. It combines high stiffness with excellent performance, while the integrated linear motors ensure high dynamics.
This KT series is available in three sizes, each with different travels: up to 110 mm (KT230), 210 mm (KT305) and 320 mm (KT405) in X and Y direction.
Extremely fast with high resolution and accuracy
• Ideal for scanning applications in metrology and microscopy
• High-precision repeatability up to 0.3 µm
• PositionSave function secures the exact position of the stages, when the motors are „off“
Fields of application
Metrology, high-resolution microscopy, screening, confocal microscopy, biotechnology, 3-D imaging, interferometry
