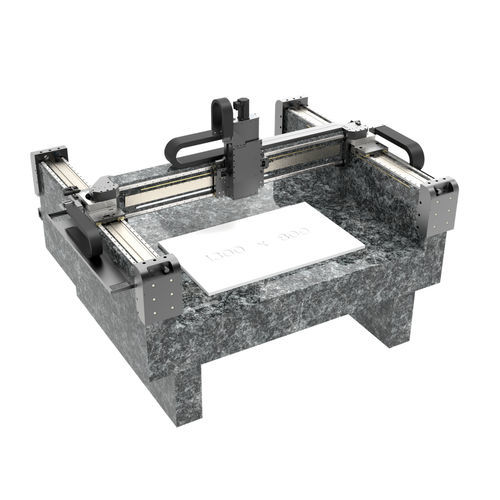

XYZ positioning system 782300:150.26

laserportalball screw

XYZ gantry for highly dynamic laser applications | XY linear motor, profile rail | Z ball screw, AC servo | travels up to 1300 x 800 mm Highly dynamic XYZ positioning system for laser applications This gantry allows highly dynamic motions over an area of 1300 x 800 mm. The custom processing head or sensor on Z-axis moves quickly, continuously over the carriers on the granite. The profiled rail guides are mounted directly on the granite to provide optimum running characteristics for enormously repeatable sub-micron results. The gantry design makes integration into cycle lines and lining up multiple such portals easily possible. High throughput with consistent quality · Ideal for high-precision and dynamic applications e.g. laser joining, laser micro applications in medical technology · Very large travel ranges of 1300 x 800 mm · Reliable and consistent quality due to high-precision positioning with a repeatability of up to 0.8 µm · Integrated linear motors guarantee high accelerations and speeds with simultaneous high precision Optionally expandable: · Stackable system design · Adaptation of travels, length combination, cabling and motion control · Base plate made of granite or aluminum · Special configuration for biotechnology, medical technology, pharmaceuticals, semiconductors · Versions for clean room ISO 14644-1 (up to class 1 on request) · Immediate use with pre-configured motion controller incl. exemplary software
