2-axis positioning system 782300:216.26

XYXZlinear

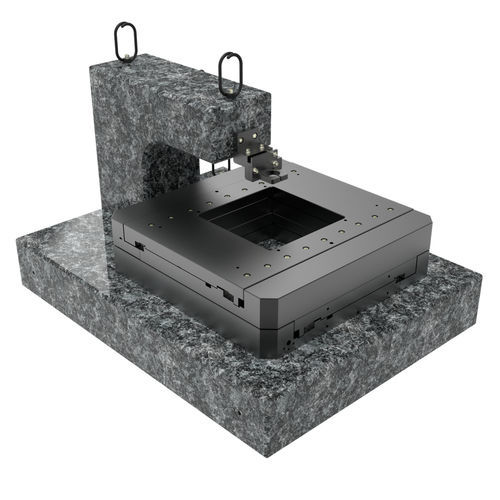

XY Laboratory Analytics System with holder for sensor and XY stage with aperture | DC motor, ball screw, motor encoder 2-axis system with sensor holder for high-resolution laboratory analytics This XY system on a granite gantry consists of the high-precision and durable KDT380-DC XY stage with transmitted light. A sensor or camera can be attached to the upper granite for high-precision measurement tasks. This combination is suitable for all applications where µm stability is required for high resolution and detailed imaging. The XZ system is ready to use with controller and operates with reliable parameters. High-precision analysis of the finest details · Ideal for set-up and expansion of high-resolution analysis, scanning, microscopy and measurement tasks · Attachment for a sensor or camera · High repeatability up to 2 µm · µm stability for highest resolutions and detailed imaging · Perfect flatness of 0.3 µm for medium loads up to 5 kg Optionally configurable: · Different motor variants: DC motor or stepper motor · Can be combined to a XY-Z positioning system (e.g. LA85, MT130) · Versions for clean room ISO 14644-1 · Immediate use with pre-configured controller incl. exemplary software
