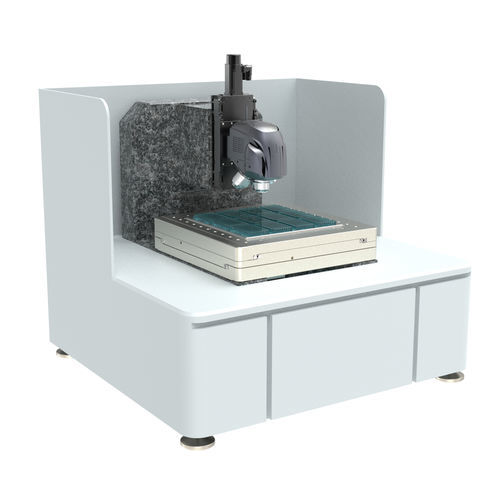

XYZ positioning system 782330:159.26.AB

automaticfor clean roomsfor the pharmaceutical industry

XY-Z positioning system for high-throughput screening of microtiter wells (clean room) | high-precision for pharmaceutical testing, life science testing, etc. - Laboratory / Analytics Large transmission positioning system for high-precision screening tasks This high-precision XY-Z positioning system with large aperture enables measurement from both sides or by means of transmitted light. A customized microscope, camera or sensor can be attached in the Z-direction. The microtiter well plates are moved on the KDT600-EDML XY stage under the Z-axis. Up to 12 well plates can be placed with a travel distance of 350 mm above the large transmitted light of 400 mm. Transillumination of the samples from below ensures perfect screening of bioreactions. Ideal for life science and biotech applications as well as drug screening in the pharmaceutical industry Reduced loading cycles due to the large aperture of 400 x 400 mm Short scan times due to accelerations of up to 3 m/s2 and top speeds of 500 mm/s, even in start-stop mode Version for clean room ISO 14644-1 (up to class 1 on request) Cost-optimized performance comparable to air bearing systems Optionally expandable: Dual motors in the bottom axis for identical acceleration values in X and Y Scalable to 8 or 16 plates Base plate made of granite or aluminum Chemical resistant, absorption free surfaces Customization for synthetic, biological or living samples Ready-to-use motion controller incl. sample software
