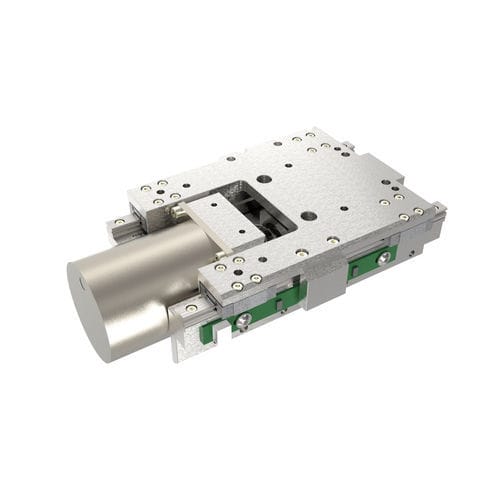

Compact stage LA85-25-SM-HV

linearmotorized1-axis

LA85 - Vacuum linear stages and axes Compact focus linear stage HV / UHV, 25 mm travel, 1.6 µm repeatability, 4 kg load • Vacuum: all ranges HV / UHV up to 10E-8 mbar • Lubrication liquid up to 10E-8 • Max. Bakeout temperature: 100°C • Magnetic Version Optionally configurable: • Extendable travels up to 50 mm • Optionally with linear scale for repeatability up to 0.3 µm as well as position feedback and monitoring • Nickel-plated aluminum parts for increased hygiene requirements in medical technology and the pharmaceutical industry on request • Special lubrication for clean room, vacuum, pharma or food industry • Optional with controller FMC220 or FMC400/450 Easy to integrate for horizontal and vertical applications The compact and robust linear stage is easy to integrate for demanding low-emission applications in cleanroom, vacuum and high vacuum. It convinces with an optimal price-performance ratio with tested exceptionally high durability. For this reason, this linear stage is favored for large and small series.The robust, very stable base structure, ground to highest flatness, allows excellent overrun values and enormous stiffness for maximum resolutions.It has a special motor with minimum outgassing values and for use under elevated temperatures. In addition, it has a compact, non-contact switching PCB switch for the end position, outgassed to 10E-8mBar. Optinally, an individual special configuration for increased clean room conditions and for use in biotechnology, medical technology, food industry and pharmaceutical technology is possible.
