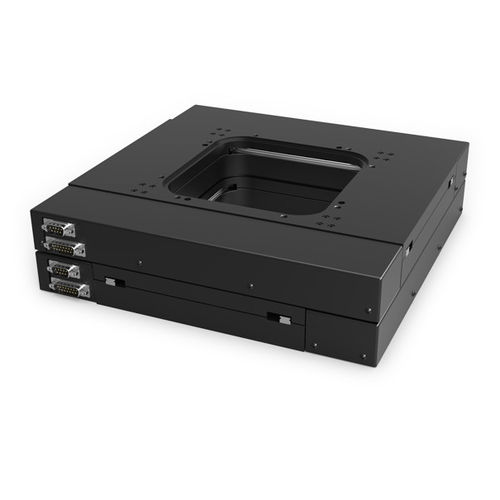

XY stage KDT310-DC series

motorizedhigh-accuracyfor microscopes

Microscopy stage with 100 mm travel, aperture 150 mm, 0.5 µm repeatability, 7 kg load Scanning stage with large aperture The space-saving design and large aperture characterize these robust XY stage. High precision ball screws and adjustable othogonality ensure highly precise positioning and running accuracies. At the same time, it impresses with ist good value for money and long lifetime. Designed for microscopy tasks • Ideal for microscopy, optical inspection systems and laser processing • High-precision repeatability up to 0.5 µm • Good price-performance ratio and very long life cycle • Optional as stepper motor version or with 50 mm travel (KDT235) available Fields of application High-resolution applications in microscopy, optical inspection systems, 3-D imaging, screening, interferometry, metrology, autofocus systems, biotechnology, semiconductor testing
