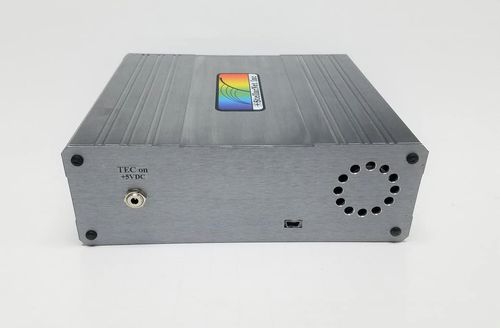

Optical spectrometer SILVER-Nova

CCDUVNIR

Resolution 1nm with 25um slit Most well rounded spectrometer Highest sensitivity for low light applications TE Cooler for 65% increased S/N at long exposures UV enhanced CCD detector with optical lens assemblies SILVER-Nova-TEC-X2 2-stage TEC for -30 deg cooling & 80% noise reduction Interchangeable Slit upgrade Options The SILVER-Nova is the most well rounded spectrometer choice allowing research grade results for numerous spectroscopic applications over the 190-1110nm wavelength range. Composite Grating Technology to deliver high efficiency in both the UV & NIR spectral extremes. Superior Detector Sensitivity – The UV enhanced CCD detector with integrated TE cooler, gain enhancements, and optical lens assemblies allow for unparalleled sensitivity, with over 65% decreased noise at long exposures. High Resolution – Advancements in SILVER-Nova optical design deliver 1nm resolution with a 25um slit. Additionally, the metal enclosure is ruggedized and compact to allow for portable, process, or laboratory environments. Included TEC and TEC-X2 Upgrade Capability – Optical housing includes sealed and isolated detector enclosure with specialized heat sink and air flow design for added stability and cool operation. Thermoelectric detector cooling improves the stability of the detector for lengthy measurements where thermal noise can distort and override signal. Standard SILVER-Nova includes 1-stage TEC for -15 degrees and options for upgrade to the 2-stage TEC-X2 for -30 degrees below ambient; this increases instrument S/N drastically by reducing noise over 80% at long exposures.
