Optical spectrometer GREEN-Wave series
fiber opticlaboratoryprocess

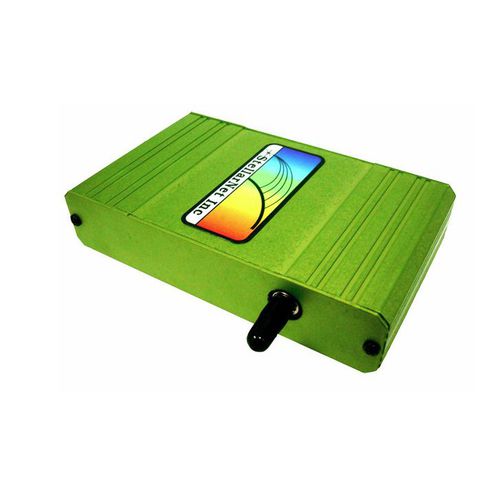

Optical spectrometer - GREEN-Wave series - StellarNet - fiber optic / laboratory / process
Optical spectrometer - GREEN-Wave series - StellarNet - fiber optic / laboratory / process
Optical spectrometer - GREEN-Wave series - StellarNet - fiber optic / laboratory / process - image - 2
Optical spectrometer - GREEN-Wave series - StellarNet - fiber optic / laboratory / process - image - 3
Optical spectrometer - GREEN-Wave series - StellarNet - fiber optic / laboratory / process - image - 4
Optical spectrometer - GREEN-Wave series - StellarNet - fiber optic / laboratory / process - image - 5
Optical spectrometer - GREEN-Wave series - StellarNet - fiber optic / laboratory / process - image - 6
Add to favorites
Compare this product


Characteristics

Type
optical, fiber optic
Domain
laboratory, process, for teaching
Configuration
compact, modular, portable
Detector type
CCD
Other characteristics
robust, USB, rugged, grating
Wavelength

Min.: 350 nm

Max.: 1,150 nm

Description

Most Affordable model with volume discounts available 8 standard models with options for customized wavelength ranges Signal: noise = 400:1 1x3x5″ compact enclosure allows for eXtreme portability New! low power consumption for 2x longer lifetime on tablets/laptops Great for teaching and educational labs! The StellarNet GREEN-Wave miniature spectrometers are fiber optically coupled instruments with a wide selection of standard models for measurements in 350-1150nm wavelength ranges. Various models provide a choice of grating range and slit resolutions. New and improved electronics with a high speed 16-bit digitizer allows for fast data acquisition and a signal to noise of 400:1 Ruggedized– The detachable spectrograph assembly and control electronics are protected inside a rugged metal enclosure, suitable for undergraduate use! Multi-unit connection (up to 8) can be daisy chained together and are able to run simultaneously. USB Powered – GREEN-Wave miniature spectrometers can be powered directly from your PC USB-2 port. A single strand fiber optic cable or probe assembly delivers input via standard SMA 905 fiber optic connector with a choice of cable lengths. The spectrograph optics are exceptionally robust in a vibration tolerant modular design, with no moving parts. Onboard Memory with pre-set calibrations and spectrometer settings and snap shot memory to provide instantaneous spectral image from the highly sensitive CCD with 2048.
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
