PTFE pipe expansion joint AI-1roundflangeaxial
Add to favorites
Compare this product
Characteristics
- Material
- PTFE
- Configuration
- round
- Installation system
- flange
- Expansion axis
- axial
- Applications
- universal, for the chemical industry, for the food industry
- Nominal diameter
Min.: 40 mm
(1.57 in)Max.: 500 mm
(19.69 in)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 100 °C
(212 °F)- Length
Min.: 131 mm
(5.16 in)Max.: 262 mm
(10.31 in)- Pressure
Min.: 0 bar
(0 psi)Max.: 10 bar
(145 psi)
Description

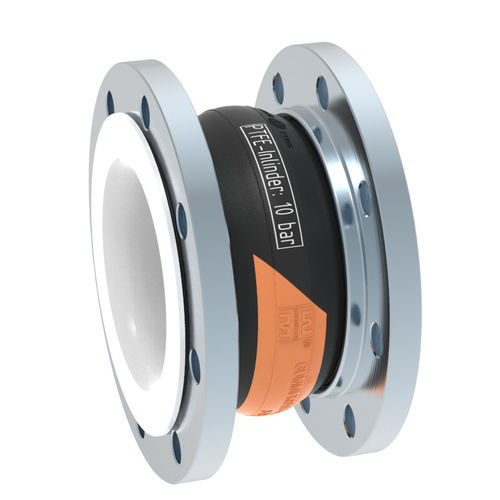

Universal expansion joint consisting of a rubber bellow with seamless PTFE lining and rotable flanges.
Applications:
• for conveying aggressive media
• very good chemical resistance
• resistant to most of the acids and lyes
• for compensating axial, lateral and angular movement
• for muffling vibration and noise
• for reducing thermal and mechanical tension
• to compensate for installation inaccuracies
