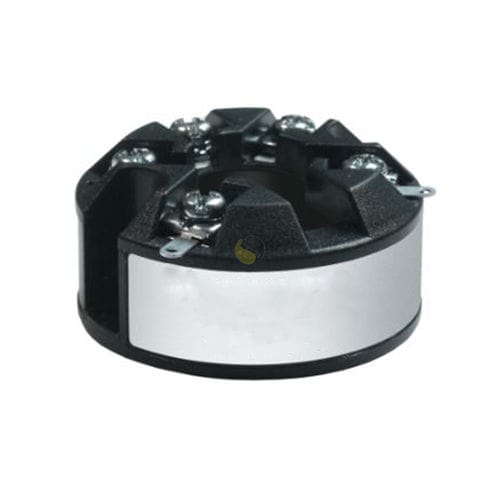

Probe head-mounted temperature transmitter IXINH, IXATE Series

Pt100thermocoupleanalog

ATEX approved loop powered temperature transmitter for hazardous area  applications. Extended Description ATEX approved loop powered temperature transmitter for hazardous area applications. Our range of 4 to 20 mA output loop-powered in-head temperature transmitters are available for use with either thermocouple types K, J, N, B & S or Pt100 RTD sensors. They have an approval rating of Ex ia IIC T5/T6, ATEX II 1G for use in hazardous area applications. The transmitter can be rail mounted or used in KNE, BUZ and DIN B housings. They have a 4.5mm centre hole for quick sensor replacement and include spring loaded mounting screws. Typically customers will request a specific temperature range for the device to be configured to at time of ordering. Features • Thermocouple or RTD (Pt100) input • Ex ia IIC T4, ATEX II approvals • Accuracy better than 0.25°C (Pt100 sensor) • Sensor error detection • 2-way configuration • 4-20mA Output Application • Industrial probes • Replacements in field fitted probes • For connection to instrumentation systems that will not except T/C or RTD directly Extended Description Loop powered temperature transmitter for safe area applications. Our range of 4 to 20 mA output loop-powered in-head temperature transmitters are available for use with either Pt100 RTD sensors or thermocouples in types K, J, N, B & S. The transmitter can be rail mounted or used in a number of terminal heads including KNE, BUZ, KPP, LS and DIN B housings with 33mm centres. They have a 6mm centre hole for quick sensor replacement and include spring loaded mounting screws.
