LED-illuminated switch TBD

piezoelectricsingle-polevandal-proof

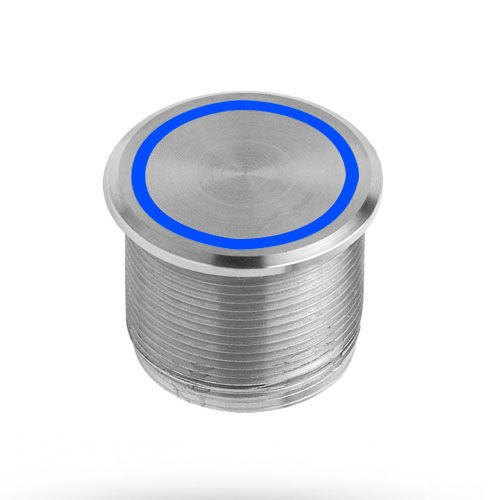

19MM one color- LED illuminated, flat head Aluminum natural, BPS - Basic Piezo Switch One piece solid metal switch based on the piezoelectric principle which is the ability of some materials (crystals and certain ceramics), to generate an electric pulse in response to applied mechanical stress. * Vandal proof * No moving parts * >10M operating cycles * No power consumption * Completely sealed IP69K * Weather proof * Easy installation Specifications Part Number: TBD Type: Piezo Momentary Thread Cut out: 19 mm IP rating: IP69 Material: Aluminum Type of head: flat head Ring Illumination: blue Housing Colour: Natural Cable: 20cm open leads Power supply: 24V Switching voltage: 24V Switching current: 1A Actuating force, typically: 3-5 N Life cycle: >10 M Operating temperature: -40°C to +85C° Vibration resistance: 5-500Hz/9.4m Shock resistance: 75g
