Programmable switch TBD

piezoelectricsingle-polevandal-proof

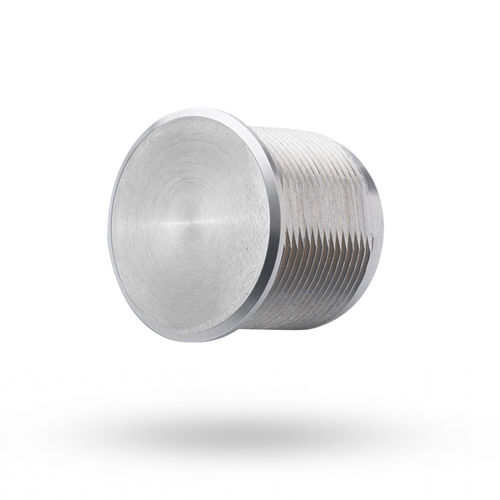

22 MM TIME PROGRAMED SWITCHES FOR START, STOP, LOCKOUT TIME, REPEAT ACTIVATION , NON ILLUMINATED ALUMINUM Time Programed Switch (start, stop, lockout time, repeat activation functions) One piece solid metal switch based on the piezoelectric principle, which is the ability of some materials (crystals and certain ceramics) to generate an electric pulse in response to applied mechanical stress. * Vandal proof * No moving parts * >10 M operating cycles * No power consumption * Completely sealed – IP68/IP69K * Weather proof * Easy installation Type: Piezo Momentary Thread Cut out: 22 mm IP rating: IP68/IP69K Material: Aluminum Type of head: Flat head Ring Illumination: Non illuminated Housing Colour: Natural Cable: 20 cm open leads Switching current: 1 A Actuating force, typically: 3-5 N Life cycle: >10 M Operating temperature: -40 °C to +85 °C Vibration resistance: 5-500 Hz/9.4 m Shock resistance: 75 g
