Piezoelectric switch TBD
single-polevandal-proofIP69

Piezoelectric switch - TBD - Stern Engineering Ltd. - single-pole / vandal-proof / IP69
Piezoelectric switch - TBD - Stern Engineering Ltd. - single-pole / vandal-proof / IP69
Add to favorites
Compare this product


Characteristics

Type
piezoelectric
Number of poles
single-pole
Protection level
vandal-proof, IP69, weather-proof
Other characteristics
panel-mount, LED-illuminated, mechanical, sealed, green LED, red LED, blue LED, white LED, anodized (red), momentary
Primary current

1 A

Voltage

24 V

Operating temperature

Min.: -40 °C
(-40 °F)

Max.: 85 °C
(185 °F)

Description

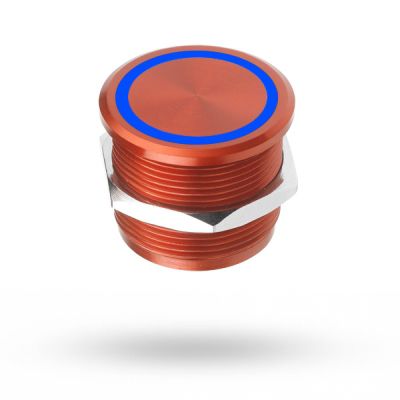

BPS - Basic Piezo Switch One piece solid metal switch based on the piezoelectric principle, which is the ability of some materials (crystals and certain ceramics) to generate an electric pulse in response to applied mechanical stress. * Vandal proof * No moving parts * >10 M operating cycles * No power consumption * Completely sealed – IP69 * Weather proof * Easy installation Specifications Part Number: TBD Type: Piezo Momentary Thread Cut out: 19 mm IP rating: IP69 Material: Aluminum Type of head: Flat head Ring Illumination: Red-Green / White-Blue Housing Colour: Red anodized Cable: 20 cm open leads Switching voltage: 24 V Switching current: 1 A Actuating force, typically: 3-5 N Life cycle: >10 M Operating temperature: -40 °C to +85 °C Vibration resistance: 5-500Hz/9.4m Shock resistance: 7 5g
