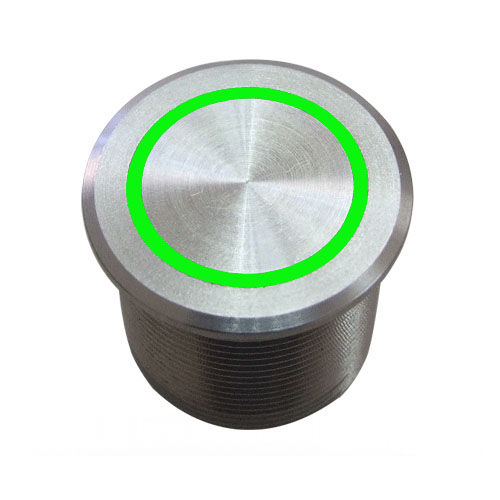

Piezoelectric switch 07225200

single-polevandal-proofIP69

22 MM TWO COLOR LED ILLUMINATED FLAT HEAD STAINLESS STEEL BPS - Basic Piezo Switch One piece solid metal switch based on the piezoelectric principle, which is the ability of some materials (crystals and certain ceramics) to generate an electric pulse in response to applied mechanical stress. * Vandal proof * No moving parts * >10 M operating cycles * No power consumption * Completely sealed – IP69 * Weather proof * Easy installation Type: Piezo Momentary Thread Cut out: 22 mm IP rating: IP69 Material: Stainless steel Type of head: Flat head Ring Illumination: Red-Green / White-Blue Housing Colour: Natural Cable: 20 cm open leads Switching voltage: 24 V Switching current: 1 A Actuating force, typically: 3-5 N Life cycle: >10 M Operating temperature: -40 °C to +85 °C Vibration resistance: 5-500 Hz/9.4 m Shock resistance: 75 g
