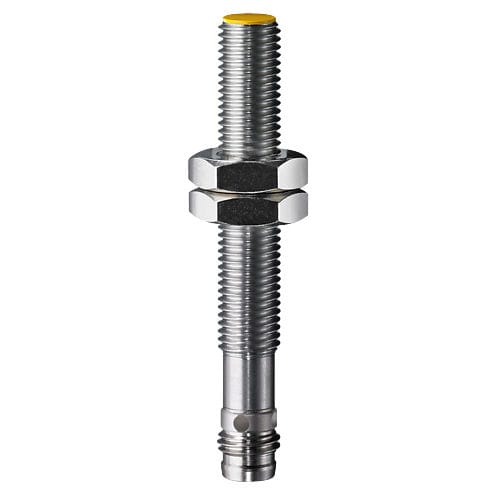

Inductive proximity sensor IS M8 series

cylindricalM30M18

• Stainless steel enclosure • M8 x 1 thread • Flush mounting • Long life, no mechanical wear • Suitable for the food processing industry • Insensitive to soiling • With LED • With pre-wired cable or plug-in connector Applied standards EN 60947-5-2 Enclosure stainless steel 1.4305 Front cap POM Degree of protection IP67 (IEC/EN 60529) Connection cable PVC (Ø max. 3.6 mm), 3 x 0.14 mm² or plug-in connector M8 x 1 Switching elements 1 NO contact, PNP, 3-wire Rated switching distance sn 2 mm Correction factors Steel (Fe360) = 1; Stainless steel approx. 0.7; Brass approx. 0.5; Aluminium approx. 0.4; Copper approx. 0.4 Rated operating voltage range UB 6 … 30 VDC Residual ripple ≤ 10 % Switching current max. 0.2 A Voltage drop at Ie max. 1.8 V Current absorption < 12 mA at 24 VDC Hysteresis approx. 10 % Switching frequency 2000 Hz Repeatability ≤ 3 % Protection circuit Inductive interference protection, protection against polarity reversal, short-circuit and overload proof LED display lights up yellow on actuation
