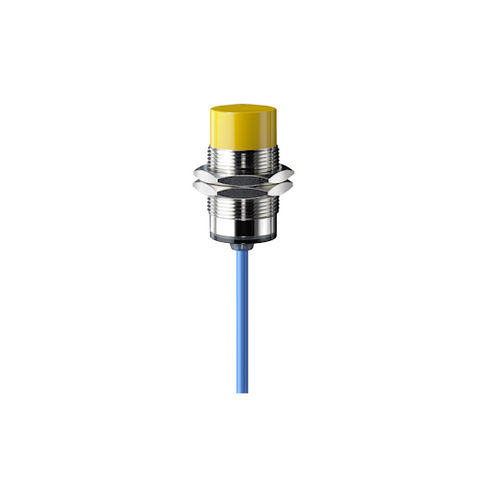

Inductive proximity sensor Ex IS M30

cylindricalM30threaded

• Ex zone 0 and 20 • Stainless steel enclosure • Flush or non-flush mounting • Long life, no mechanical wear • Suitable for the food processing industry • Insensitive to soiling • With LED • M30 x 1.5 thread • With pre-wired cable • Attention: Please state required international approvals with your order! Applied standards EN IEC 60079-0, EN 60079-11, EN 60079-26 Enclosure stainless steel 1.4305 Front cap polycarbonate Degree of protection IP66, IP67, IP68 (EN 60079-0 + IEC/EN 60529) Connection cable PUR blue Cable diameter 4.5 mm Cable cross-section 2 x 0.5 mm² Switching system Namur to EN 60947-5-6 Correction factors Steel (Fe360) = 1; Stainless steel approx. 0.7; Brass approx. 0.5; Aluminium approx. 0.4; Copper approx. 0.4 Rated operating voltage range UB 8.2 VDC Current absorption in presence of metal ≤ 1 mA; in absence of metal ≥ 3 mA Switching frequency 500 Hz Repeatability ≤ 3 % Protection circuit Inductive interference protection, protection against polarity reversal, short-circuit and overload proof Ex marking L II 1G Ex ia IIB T6 Ga, L II 1D Ex ia IIIC T85°C Da
