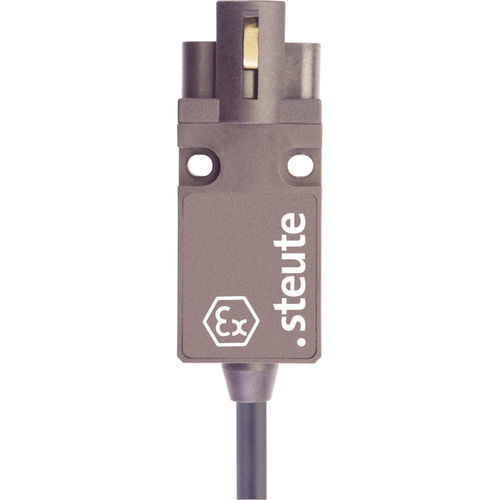

Explosion-proof door opening detector Ex 14 AZ

• Ex zone 1 and 21 • Thermoplastic enclosure • Compact design • Double insulated X • Slow action A, 1 NC contact • With pre-wired cable • Special version only for dust Ex zone 22 available • Attention: Please state required international approvals with your order! Applied standards EN IEC 60079-0, EN 60079-1, EN 60079-31, EN 60947-5-1, EN ISO 13849-1, EN ISO 14119, EN 81-1, EN 81-2, EN 81-20, EN 81-50 Enclosure thermoplastic, glass-fibre reinforced, impact resistant, self-extinguishing UL 94 V-0 Actuator stainless steel 1.4301 Switch type type 2 Coding level low coding Tightening torque enclosure mounting screws: max. 1.5 Nm Degree of protection IP65 (IEC/EN 60529) B10d (10 % load) 2 million TM max. 20 years Contact material silver Switching system slow action, positive break NC contacts A Switching elements 1 NC contact Connection pre-wired cable H03VV-F Cable cross-section 2 x 0.75 mm² Cable length 1.5; 3; 5; 6 or 10 m Rated impulse withstand voltage Uimp 4 kV Rated insulation voltage Ui 250 V Conventional thermal current Ithe 2 A Rated operating current/voltage Ie/Ue 2 A/230 VAC; 0.25 A/230 VDC Utilisation category AC-15; DC-13 Short-circuit protection 2 A gG/gN fuse Positive break travel 3.5 mm Actuating force approx. 2 - 3.5 N Ambient temperature T6: –20 °C … +65 °C, T5: –20 °C … +75 °C Mechanical life > 1 million operations
