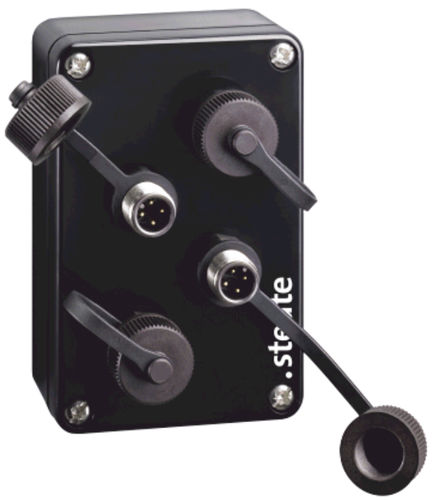

Wireless universal transmitter RF I/O series

• Thermoplastic enclosure • sWave® wireless technology (SW868/SW915/SW917/SW922) • No wiring and pipe laying required • Power supply by Lithium battery • Easy programming of receiver • Output signal can be individually configured at the receiver • Available with "LBT - Listen before Talk" software (necessary in conjunction with potential interference) Applied standards EN 60947-5-1, EN 61000-6-2, EN 61000-6-3, EN 301 489-1, EN 301 489-3, EN 300 220-1, EN 300 220-2 Enclosure ABS Degree of protection IP67 (IEC/EN 60529) Voltage source lithium battery (replaceable) Connection 4 x plug-in connector M12 x 1, 4-pole Connectable devices RF IS M8, RF IS M12, RF IS M18, RF IS M30, RF RC M10, external switches using the coupling with connecting cable 1215497 or 1262873 Ambient temperature –20 °C … +65 °C Switching frequency max. 5 Hz Standby current 60 µA Wireless range SW868/915/917: max. 450 m outdoors, max. 40 m indoors SW922: max. 150 m outdoors, max. 20 m indoors Actuating time min. 80 ms Note status signal adjustable via jumper, no, 10 s, 100 s, 1000 s, 10000 s delivery state: jumper position without status signal transmission of battery voltage and switching condition Wireless approvals Europe: RED 2014/53/EU USA: FCC - XK5-RFRXSW915 Canada: IC - 5158A-RFRXSW915 Mexico: IFT - RCPSTRF17-1886 Brazil: ANATEL 04172-18-06718
