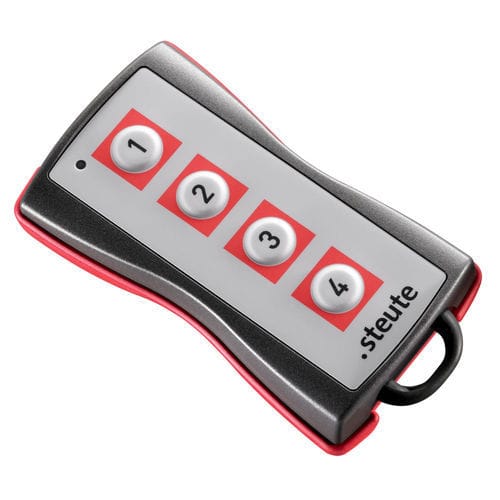

4-button pendant station RF HB SW2.4

IP54thermoplastic

• Thermoplastic enclosure • sWave® 2.4 GHz wireless technology • Keypad with four function keys and LED display • Surrounding sealing (shock protection) • With lanyard keychain mounting • Power supply by battery • Internal ceramic antenna • Easy programming of receiver • Output signal can be individually configured at the receiver Applied standards EN 300 440, EN 60947-5-1, EN 61000-6-2, EN 301 489-1, EN 301 489-3, EN 62479, EN 62368-1 Enclosure ABS, graphite grey, similar to RAL 7024 Decor seal TPE, signal red, similar to RAL 3001 Antenna internal antenna Degree of protection IP54 (IEC/EN 60529) Ambient temperature 0 °C … +50 °C Storage and shipping temperature –10 °C … +50 °C Rated operating current Ie Active: 25 mA, Sleep: 100 μA LED display LED red, LED green Wireless approvals Europe: RED 2014/53/EU USA: FCC - XK5-SW100AMBINT Canada: IC - 5158A-SW100AMBINT
