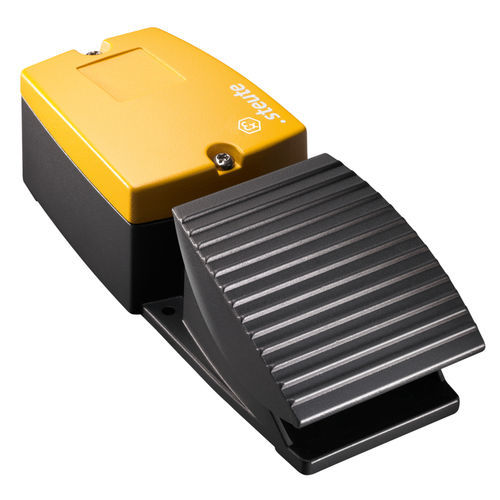

Control foot switch EX GFI EXTREME

electricsingle pedalcorrosion-resistant

• Ex zone 1 and 21 • 1-pedal type • Corrosion-resistant aluminium enclosure • Without protective shield • Salt-mist spray test to DIN EN ISO 9227 • High degree of protection IP66 / IP67 • Temperature resistant from -40 °C to +55 °C • Screws and metal parts made of stainless steel • Wiring compartment • Low pedal height • Attention: Please state required international approvals with your order! Applied standards EN 60947-5-1, EN IEC 60079-0, EN 60079-1, EN IEC 60079-7, EN 60079-31, EN ISO 13849-1 Enclosure aluminium die-cast, corrosion-resistant, powder-coated, passivated, anthracite grey, similar to RAL 7016 Cover aluminium, corrosion-resistant, powder-coated, passivated, signal yellow, similar to RAL 1003 Pedal aluminium die-cast, corrosion-resistant, hard-coated, powder-coated, anthracite grey, similar to RAL 7016 Degree of protection IP55 (EN 60079-0 + IEC/EN 60529) IP66/IP67 (IEC/EN 60529) B10d (10 % load) 2 million TM max. 20 years Connection screw connection terminals Cable cross-section max. 2.5 mm² (incl. conductor ferrules) Contact material silver Switching system slow action, positive break NC contacts A Switching elements 1 NC/1 NO contact, type Zb Utilisation category AC-15; DC-13 Rated operating current/voltage Ie/Ue 5 A/250 VAC; 0.2 A/230 VDC Short-circuit protection 5 A gG/gN fuse Ambient temperature T6: –40 °C … +55 °C Mechanical life > 1 million operations Impact energy max. 7 J Ex marking L II 2G Ex de IIC T6 Gb, L II 2D Ex tb IIIA T80°C Db IECEx Ex de IIC T6 Gb, Ex tb IIIA T80°C Db Approvals PTB 15 ATEX 1010 IECEx PTB 15.0035
