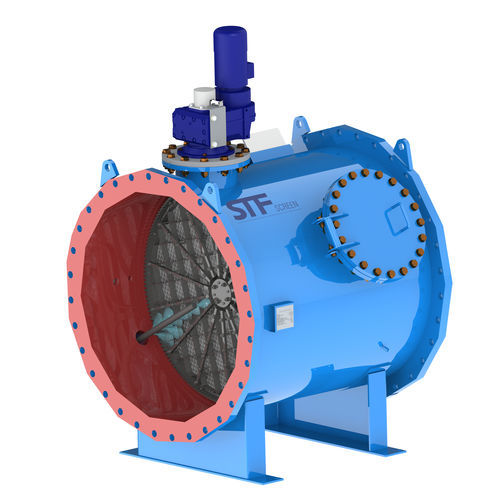

Water filter FMA 6000

for automatic machinesbackwash

STF filters Serie 6000 are electric drive automatic screen filters. They are specially designed for their assembly in piping alignments with high flow rates for municipal, industrial and irrigation applications. The main feature of this device is no pressure is required for self-cleaning. The filters in the FMA 6000 series are coupled directly to the pipe by means of standardized flanges, as an element thereof. The only installation required is the connection of electrical and control elements. All materials are top quality, and stainless steel is used in all mechanical components in contact with water. The filter body is made of carbon steel. The mechanical elements are placed in the “clean water” side so that no foreign body can affect its operation. - Continuous filtration process during the backwashing cycle. - Double Diamond screen that diminishes the head loss and make the backwashing - 1, 1,5 and 2 mm filtration degrees. - It is designed for tubes between 500 mm and 3 meters diameter. (16 – 120”) - Flow rates up to 52.000 m³/h.
