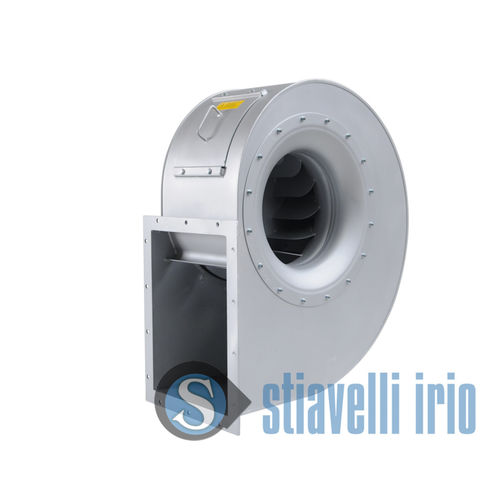

Centrifugal fan YVR/N Seriescoolingdryingventilation
Add to favorites
Compare this product
Characteristics
- Configuration
- centrifugal
- Function
- cooling, drying, ventilation
- Applications
- industrial, high-volume
- Other characteristics
- direct-drive, belt-driven, low-pressure, backward curved
- Air flow
Max.: 375,000 m³/h
(13,243,000.021 ft³/h)Min.: 180 m³/h
(6,356.64 ft³/h)
Description
RANGE
V (m³/h) = 180÷375000
Pt (kg/m²) = 12÷440
FEATURES
Low pressure high volume fan (centrifugal).
Backward curved blades impeller.
Direct-coupled motor with impeller splined on the shaft or Belt drive transmission.
TEMPERATURE
Temperature allowed:
Direct-coupled: Maximum fluid temperature allowed is 80°C or 150 °C if a cooling fan is installed
Belt Drive: Maximum fluid temperature allowed is 90°C or 350°C if a cooling fan is installed
In case of higher temperatures, some modifications to the fan structure are needed.
TYPICAL APPLICATIONS
This type of low pressure high volume fan is suitable to suck clean or slightly dusty air.
Ventilation systems
Conditioning
Drying processes
Cooling processes
Mechanical draught
Fumes/gas elimination
Humidity regulation
