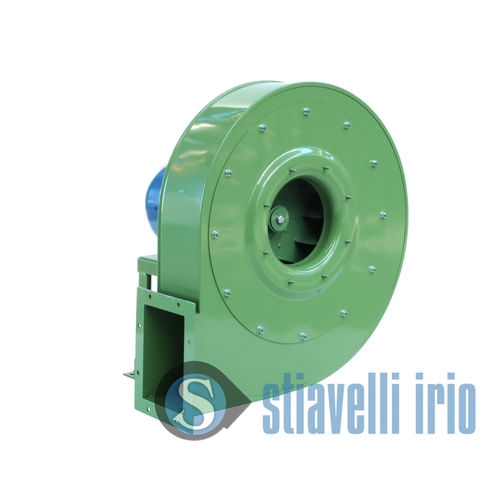

Low-noise fan YVV/N SERIEScentrifugalcoolingindustrial
Add to favorites
Compare this product
Characteristics
- Type
- low-noise
- Configuration
- centrifugal
- Function
- cooling
- Applications
- industrial
- Other characteristics
- direct-drive, belt-driven, medium-pressure, low-pressure, with backward-inclined straight blades
- Air flow
Max.: 8,400 m³/h
(296,643.2 ft³/h)Min.: 330 m³/h
(11,653.84 ft³/h)
Description
RANGE
V (m³/h) = 330÷8400
Pt (kg/m²) = 70÷750
FEATURES
Low and medium pressure centrifugal fan.
High-efficiency low-noise backward blades impeller.
Direct-coupled motor with impeller splined on the shaft or Belt drive transmission.
TEMPERATURE
Temperature allowed:
Direct Coupled: Maximum fluid temperature allowed 80°C or 150°C if a cooling fan is installed
Belt Drive trasmission: Maximum fluid temperature allowed 90°C or 350°C if a cooling fan is installed
In case of higher temperatures, some modifications to the fan structure are needed.
TYPICAL APPLICATIONS
This type of fan is suitable to suck/intake very dusty air with suspended material. NO filaments.
Fumes/gas elimination
Small shavings suction
Sawings handling
Grinding suction
Mechanical draught
Granulate handling
Flour and powder handling
NO filaments
