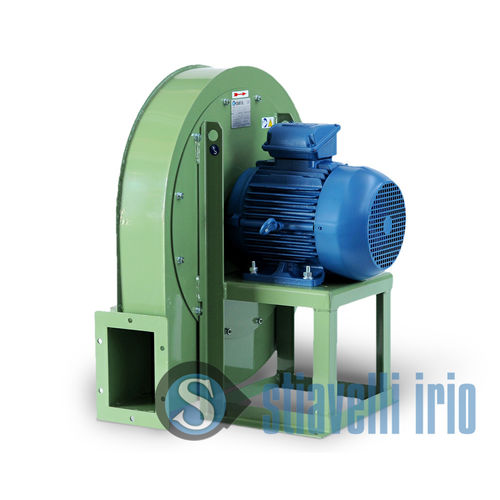

Radial fan YTB/P Seriescoolingindustrialhigh-pressure
Add to favorites
Compare this product
Characteristics
- Configuration
- radial
- Function
- cooling
- Applications
- industrial
- Other characteristics
- high-pressure, direct-drive, belt-driven, medium-pressure
- Air flow
Max.: 22,800 m³/h
(805,174.401 ft³/h)Min.: 420 m³/h
(14,832.16 ft³/h)
Description
RANGE
V (m³/h) = 420÷22800
Pt (kg/m²) = 190÷1310
FEATURES
Medium and high pressure industrial radial fan.
Open blades impeller.
Direct-coupled motor with impeller splined on the shaft or Belt drive transmission.
TEMPERATURE
Temperature allowed:
Direct Coupled: maximum fluid temperature allowed 80°C or 150°C if a cooling fan is installed
Belt Drive trasmission: maximum fluid temperature allowed 90°C or 200°C if a cooling fan is installed
In case of higher temperatures, some modifications to the fan structure are needed.
TYPICAL APPLICATIONS
This type of radial fan is suitable to suck/intake very dusty air with suspended material.
Wood carpentry plants
Shavings handlig
Granules handling
Textile, paper, plastic trimming handling
Tannery shavings handling
Mechanical draught
Textile and synthetic fibers handling
Yarn waste handling
PAPER SHREDDER
