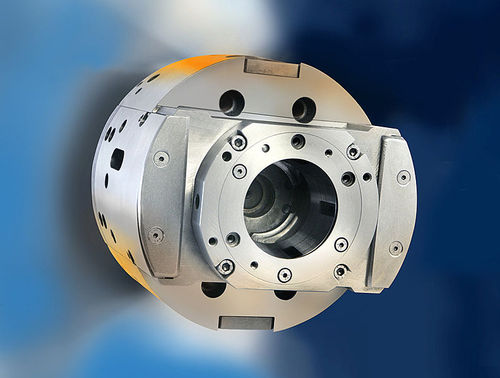

Another speciality from STIEFELMAYER. Eccentricities of up to 6 m can be infinitely set with the STIEFELMAYER eccentric chuck.
Switching backwards and forwards between centric and eccentric machining can be done with a running spindle an advantage that leads to reduced machining times for the workpiece.
Technical features:
on the fly offsetting; centric eccentric centric machining during spindle rotation
up to 6 mm eccentricity, fully adjustable with end stops
mechanical lock, hydraulic actuation
speed up to 3000 RPM
integrated centrifugal force compensation
for clamping diameter up to 40 mm
