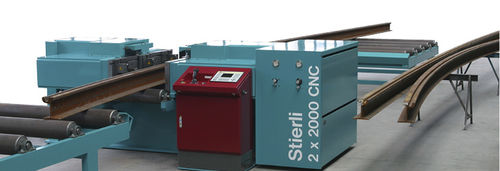

Hydraulic bending machine 2200 CNC - Rail

profilehorizontalautomatic

The “2200 CNC” stationary rail bending and straightening system is used for universal, professional bending and straightening in rail and points construction. The horizontal design facilitates simple handling and transport of the rails. With the long cylinder stroke, the rails can be machined upright or horizontally. The tool height of 300 mm allows for straightening and bending of all standard rail profiles. The abutments can be set electro-mechanically to the rail profile required. With the quick-change tool system, the machine can be refitted for a different rail profile very quickly. A modern, powerful CNC control with laser system supports the operator when bending and straightening the rails. The operator can enter the bending parameters such as the bending radius and the length of the rail numerically. Even bending parabolic curves is supported by the control system. The hydraulic horizontal press then controls the cylinder stroke and the rail feed of the powered roller conveyor in automatic mode. Bending grooved rails Bending Vignoles rails Bending and straightening tongue rails (tongue rail straightening machine) Bending full-web rails Bending special rails Bending rails by folding Straightening rails Torsion straightening of rails Straightening frogs
