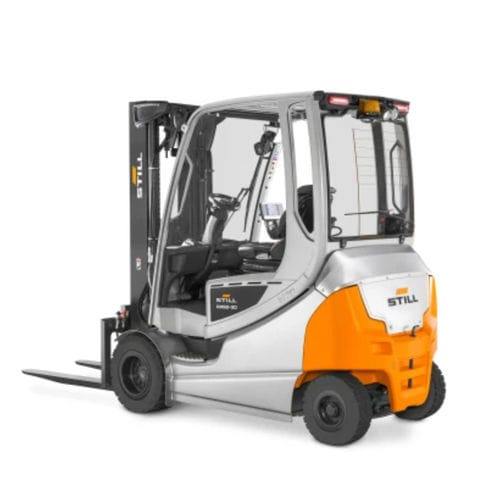

Counterbalanced forklift RX 60 series
electricride-onhandling

Counterbalanced forklift - RX 60 series - STILL - electric / ride-on / handling
Counterbalanced forklift - RX 60 series - STILL - electric / ride-on / handling
Counterbalanced forklift - RX 60 series - STILL - electric / ride-on / handling - image - 2
Counterbalanced forklift - RX 60 series - STILL - electric / ride-on / handling - image - 3
Counterbalanced forklift - RX 60 series - STILL - electric / ride-on / handling - image - 4
Counterbalanced forklift - RX 60 series - STILL - electric / ride-on / handling - image - 5
Counterbalanced forklift - RX 60 series - STILL - electric / ride-on / handling - image - 6
Counterbalanced forklift - RX 60 series - STILL - electric / ride-on / handling - image - 7
Counterbalanced forklift - RX 60 series - STILL - electric / ride-on / handling - image - 8
Counterbalanced forklift - RX 60 series - STILL - electric / ride-on / handling - image - 9
Counterbalanced forklift - RX 60 series - STILL - electric / ride-on / handling - image - 10
Counterbalanced forklift - RX 60 series - STILL - electric / ride-on / handling - image - 11
Counterbalanced forklift - RX 60 series - STILL - electric / ride-on / handling - image - 12
Counterbalanced forklift - RX 60 series - STILL - electric / ride-on / handling - image - 13
Counterbalanced forklift - RX 60 series - STILL - electric / ride-on / handling - image - 14
Counterbalanced forklift - RX 60 series - STILL - electric / ride-on / handling - image - 15
Counterbalanced forklift - RX 60 series - STILL - electric / ride-on / handling - image - 16
Counterbalanced forklift - RX 60 series - STILL - electric / ride-on / handling - image - 17
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
ride-on
Applications
handling, for warehouse, indoor, outdoor
Other characteristics
4-wheel, counterbalanced, compact, heavy-duty
Carrying capacity

2,500 kg, 3,000 kg, 3,500 kg
(5,511.6 lb, 6,613.9 lb, 7,716.2 lb)

Lifting height

7,390 mm
(290.94 in)

Load center distance

500 mm, 600 mm
(19.7 in, 23.6 in)

Weight without load

Min.: 4,599 kg
(10,139.1 lb)

Max.: 5,500 kg
(12,125.4 lb)

Axle loading with maximum load front

Min.: 6,317 kg
(13,926.6 lb)

Max.: 8,042 kg
(17,729.6 lb)

Axle loading with maximum load rear

Min.: 782 kg
(1,724 lb)

Max.: 1,041 kg
(2,295 lb)

Axle loading without load front

Min.: 2,315 kg
(5,103.7 lb)

Max.: 2,662 kg
(5,868.7 lb)

Axle loading without load rear

Min.: 2,229 kg
(4,914.1 lb)

Max.: 2,838 kg
(6,256.7 lb)

Track width front

950 mm, 992 mm, 1,002 mm
(37.4 in, 39.1 in, 39.4 in)

Track width rear

900 mm
(35.4 in)

Height of mast when lowered

2,225 mm
(87.6 in)

Free lift

160 mm
(6.3 in)

Overall height with mast raised

3,700 mm, 3,850 mm
(145.7 in, 151.6 in)

Seat height

1,235 mm
(48.6 in)

Tow couplig height

484 mm
(19.1 in)

Fork carriage width

1,150 mm
(45.3 in)

Ground clearance under mast with load

114 mm, 115 mm, 116 mm
(4.5 in, 4.5 in, 4.6 in)

Ground clearance at center of wheelbase with load

125 mm, 126 mm, 127 mm
(4.9 in, 5 in, 5 in)

Turning circle radius

2,035 mm, 2,070 mm, 2,245 mm, 2,273 mm
(80.1 in, 81.5 in, 88.4 in, 89.5 in)

Travel speed

20 km/h
(12.4 mph)

Lifting speed

Min.: 0.4 m/s
(1.312 ft/s)

Max.: 0.7 m/s
(2.297 ft/s)

Lowering speed

0.4 m/s, 0.5 m/s
(1.312 ft/s, 1.64 ft/s)

Rated drawbar pull

Min.: 7,590 N

Max.: 21,360 N

Gradeability

Min.: 21.9 %

Max.: 31.9 %

Rated output

8.5 kW, 10.5 kW
(11.6 hp, 14.3 hp)

Maximum operating pressure

250 bar
(3,625.9 psi)

Oil flow

55 l/min
(14.5 us gal/min)

Noise level

70 dB

Description

Make the most of your time. The new STILL RX 60. Get comfortable in the new STILL RX 60 and prepare to feel your heart racing with excitement as soon as the clock starts ticking. With intralogistics processes now being dealt with in a matter of seconds, you need our acceleration champion to help claw back your precious time. From the first moment, you'll find the perfect balance of power, ergonomics, manoeuvrability and energy efficiency which is truly electrifying. The RX 60-25/35 is not just a high performer – it’s one of the very best in its class. Experience moving 258 tonnes in just 3600 seconds using this new powerhouse. Enjoy the freedom demonstrated by the top range per battery charge as you load pallets for 32,400 seconds without having to stop for the battery to be recharged. Get comfy in the best workstation imaginable, including perfectly arranged control elements, maximum leg room, an impressive all-round view and the unique STILL Easy Control on-board computer. With this piece of equipment, you are only ever one click away from your favourite performance functions and you can always see the relevant performance data at a glance. It’s time to set new standards: experience your RX 60 seconds now! Exceptional performance: highest handling performance in its class Got a lot on your plate? It's time to stop wasting your time! No other forklift truck will allow you to move more goods in less time. The new RX 60 is the electric truck with the highest handling performance in its class.
