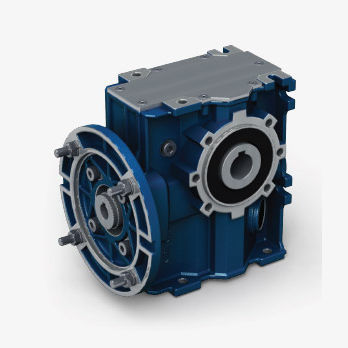

Bevel gearbox SMwormhelical gearright angle
Add to favorites
Compare this product
Characteristics
- Type
- bevel, worm, helical gear
- Shaft orientation
- right angle
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 50 - 100 Nm
- Power
Max.: 2.12 kW
(2.88 hp)Min.: 0.15 kW
(0.2 hp)
Description
The low power bevel helical gearbox range, which was unavailable until today, is now ready by means of a brand new type of gearbox,
for which mechanical system S.T.M. has been given the copyright.
This very new and innovative gearbox relies on helical gears with oblique shafts and puts together in a single conception the economical cost (typical of worm gearboxes) and high efficiency (typical of bevel helical gearboxes with right angle pair).
The 3 sizes being planned cover a torque range ranging from 100 Nm to 250 Nm and will supply every application: the best product to optimise ratio torque/cost.
Catalogs
SKEW BEVEL HELICAL S
20 Pages
