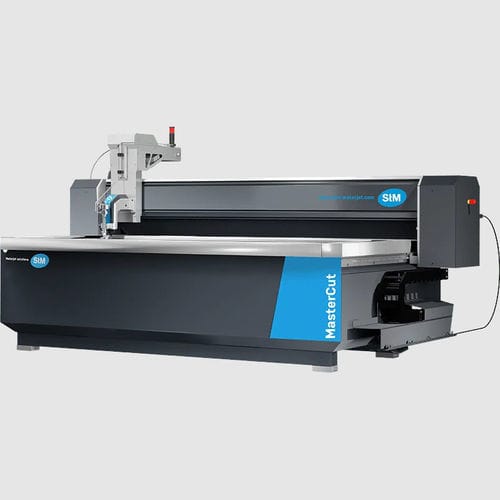

Abrasive water-jet cutting machine MasterCut
for metalfor plasticsfor stone

abrasive water-jet cutting machine
abrasive water-jet cutting machine
abrasive water-jet cutting machine
abrasive water-jet cutting machine
abrasive water-jet cutting machine
abrasive water-jet cutting machine
abrasive water-jet cutting machine
Add to favorites
Compare this product


Characteristics

Technology
abrasive water-jet
Material
for metal, for plastics, for stone, for glass, for ceramics
Product handled
sheet
Control type
servo-driven
Associated function
marking
Configuration
multi-head, 2-axis
Other characteristics
precision, heavy-duty, linear, 3D
X travel

Max.: 6,500 mm
(255.91 in)

Min.: 1,000 mm
(39.37 in)

Y travel

Max.: 3,000 mm
(118.11 in)

Min.: 1,000 mm
(39.37 in)

Z travel

200 mm
(8 in)

Cutting speed

15,000 mm/min
(9.843 in/s)

Operating pressure

Max.: 6,000 bar
(87,022.64 psi)

Min.: 4,000 bar
(58,015.1 psi)

Description

STM MasterCut waterjet cutting systems are the perfect all-rounders for sophisticated cutting tasks. STM MasterCut waterjet cutting systems provide the possibility to make demanding 2D cuts – optional with STM TAC12 angular error compensation head. The systems work resource efficiently and excel with extremely low power, water and air consumptions. All construction components, and screwed fasteners are of wear-resistant stainless steel or aluminium. Characteristic features are a flat underside as well as the smooth side walls with concealed linear guides without bellows and a high pressure tube fed through the axes. The fully digital drive consists of a brushless AC servo motor with multi axes NUM CNC control. The corresponding software runs on MS Windows and requires only a standard computer. The integrated STM lance flushing system allows an efficient transport of up to 80 % of the abrasive out of the cutting tank. What is more, STM will provide you with customised training modules to match the desired system configuration. The STM waterjet cutting system MasterCut at a glance Lightweight construction manufactured from aluminium and stainless steel Space-saving design with an overall height of only 2.1 m (incl. HP pipe system and signal light) Robust premium rack and pinion drive Marking of workpieces is possible as a standard feature Working area is accessible from three sides Cutting above and below water surface is possible Heavy-duty supports for workpieces up to 1.000 kg/m² Profitable and sustainable With the unique STM Care package, the warranty coverage of STM waterjet cutting systems can be extended from the standard 2 years to up to 8 years.
