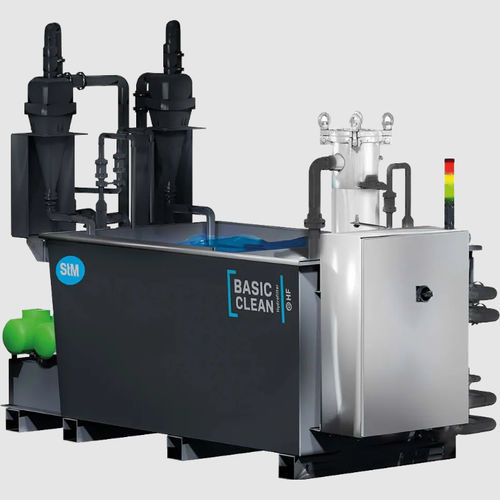

PLC rinsing machine BasicClean

abrasiveprocess waterautomatic

The STM BasicClean and STM BasicClean+ abrasive dispensing systems provide you with an economical introduction to efficient abrasive rinsing for waterjet cutting systems. The used abrasive is flushed out of the cutting basin with the automatic abrasive flushing system. A ceramic-coated high-performance pump sucks the water-abrasive mixture out of the cutting basin via the suction filter. The abrasive then settles in a BigBag, which weighs approx. 2 t when filled. The second high-performance pump in turn conveys the process water separated from the abrasive back into the cutting basin. The control takes place automatically via a PLC. The automatic abrasive rinsing system switches on automatically when cutting with abrasive sand and switches off again after the cutting process with a follow-up time. When the BigBag is full, they are lifted out of the settling tank to dry and replaced by an empty BigBag. 1-stage settling tank with high-performance pumps, efficient cyclone for rapid separation of the process water from the abrasive sand Stilling basin (available in three sizes, 250, 500 or 750 liters, depending on the size of the waterjet cutting system and the level control of the cutting basin) Control for automatic switching on and off linked to the cutting process Special ceramic-coated, long-life, high-performance pumps Piping and PLC COST-EFFECTIVE AND HIGHLY EFFICIENT When it comes to the pure output of the abrasive cutting material mixture, i.e. the separation of the process water from the abrasive sand, this system is not only a cost-effective alternative. Rather, the use of an efficient cyclone enables rapid separation of the process water from the abrasive sand.
