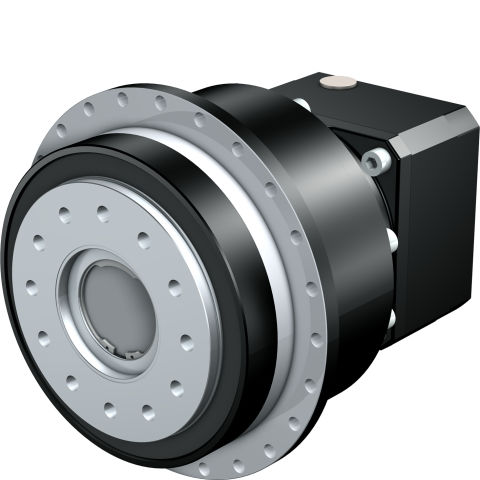

Planetary servo-gearbox PHQ

> 10 kNm5 - 10 kNmcompact

Planetary gear units from STOBER: The premier class of drive technology. Since the 1980s, STOBER has specialized in the development of planetary gear units, the premier class of drive technology! At the end of 2019, we presented the 3rd generation of planetary servo gear units, bringing drive solutions that are the most compact on the market for their performance range and enormous variety of combinations and options! Shaft: Flange shaft Bearing: Standard or reinforced (PHQ4 – PHQ5) Backlash: Standard or reduced Mounting position: Any Lubricants and maintenance: Synthetic lubricant CLP HC ISO VG 150 Lubricated for life and maintenance-free Paint: RAL 9005 Jet black Motor adapter: EasyAdapt (ME) with clamp coupling, optionally with a large motor plate (MEL) FlexiAdapt (MF) with bellow coupling and integrated thermal length compensation, optionally with a large motor plate (MFL) ServoStop (MB) with plug-in coupling (jaw coupling) and integrated spring-loaded brake
