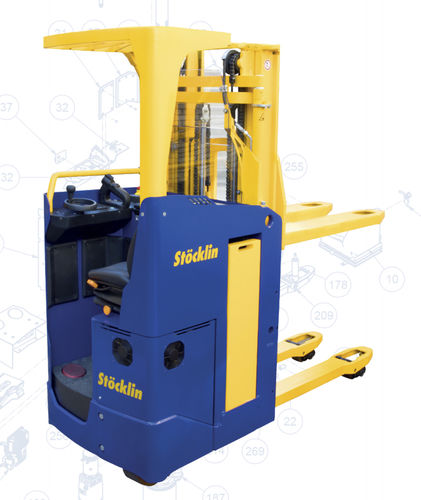

Electric stacker truck EFI seriesside-facing seated24 Vstorage
Add to favorites
Compare this product
Characteristics
- Energy
- electric
- Operator
- side-facing seated
- Voltage
- 24 V
- Applications
- handling, storage
- Other characteristics
- rugged, high-lift
- Carrying capacity
1,800 kg
(3,968.3 lb)- Lifting height
5.2 m
(17'00" )- Height of mast when lowered
2,085 mm
(82.1 in)- Overall length
930 mm
(36.6 in)- Fork width
186 mm
(7.3 in)- Fork length
1,150 mm
(45.28 in)- Fork thickness
60 mm
(2.36 in)- Turning circle radius
1,695 mm
(66.7 in)- Battery capacity
465 Ah
- Motor power traction
2.5 kW
(3.399 hp)- Motor power lifting
3 kW
(4.079 hp)- Travel speed
10.5 km/h
(6.52 mph)- Lifting speed
0.2 m/s, 0.3 m/s
(0.656 ft/s, 0.984 ft/s)- Weight
1,520 kg
(3,351.03 lb)
Description
Robust - agile - powerful
With a width of just 800 mm, it is ideal for maneuvering in narrow aisles, block storage and truck
handling. This device is designed for continuous use and lifting heights of up to 5.2 m. Energy-efficient
thanks to power recovery during electronic braking.
Technical specification
Load capacity initial lift 3000 kg standard
Fork lift capacity up to 1800 kg
