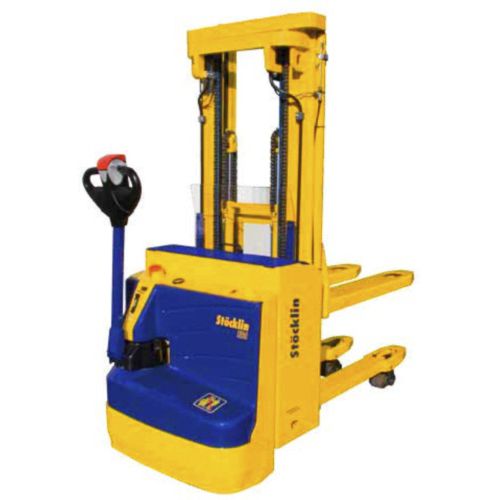

Electric stacker truck EDI serieswalk-behindlateral24 V
Add to favorites
Compare this product
Characteristics
- Energy
- electric
- Operator
- walk-behind, lateral
- Voltage
- 24 V
- Applications
- transport, handling
- Other characteristics
- rugged, high-lift
- Carrying capacity
1,200 kg, 1,400 kg, 1,600 kg, 2,000 kg
(2,645.5 lb, 3,086.5 lb, 3,527.4 lb, 4,409.2 lb)- Lifting height
Max.: 4,436 mm
(174.65 in)Min.: 2,405 mm
(94.69 in)- Free lift
Max.: 1,585 mm
(62.4 in)Min.: 120 mm
(4.7 in)- Overall width
800 mm
(31.5 in)- Overall length
1,900 mm, 1,910 mm
(74.8 in, 75.2 in)- Fork width
185 mm
(7.3 in)- Fork length
1,155 mm
(45.47 in)- Fork thickness
60 mm
(2.36 in)- Battery capacity
250 Ah
- Motor power traction
1.2 kW
(1.632 hp)- Motor power lifting
3 kW
(4.079 hp)- Travel speed
5.5 km/h
(3.42 mph)- Lifting speed
0.1 m/s, 0.2 m/s
(0.328 ft/s, 0.656 ft/s)- Weight
940 kg, 985 kg
(2,072.35 lb, 2,171.55 lb)
Description
Perfect handling - High flexibility - Optimum driving stability
With a front end length of just 775 mm, it is ideal for maneuvering in confined spaces and truck
handling. The side drive and a lateral support roller guarantee optimum driving stability at all times. For
fast handling, low power consumption and safe operation, even on slopes, thanks to the motor and
counter-flow brake.
Technical specification
Load capacity initial lift 2000 kg
Load capacity fork lift
depending on model up to 1600 kg
