Cryogenic valve 1700 ELLIPS
globemanualpneumatically-operated

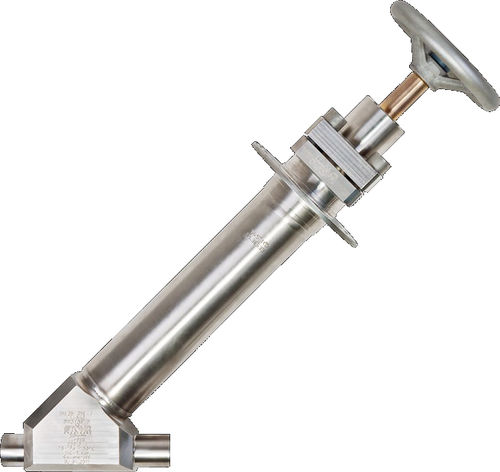

Cryogenic valve - 1700 ELLIPS - STÖHR ARMATUREN GmbH & Co KG - globe / manual / pneumatically-operated
Cryogenic valve - 1700 ELLIPS - STÖHR ARMATUREN GmbH & Co KG - globe / manual / pneumatically-operated
Cryogenic valve - 1700 ELLIPS - STÖHR ARMATUREN GmbH & Co KG - globe / manual / pneumatically-operated - image - 2
Cryogenic valve - 1700 ELLIPS - STÖHR ARMATUREN GmbH & Co KG - globe / manual / pneumatically-operated - image - 3
Add to favorites
Compare this product


Characteristics

Type
globe
Operation
manual, pneumatically-operated
Function
shut-off
Media
for gas, for oxygen, for inert gases, for liquified gas
Body
angle seat, stainless steel
Applications
cryogenic
Other characteristics
full-flow, with bellows seal, piggable, for nitrogen
DN

Min.: 8 mm
(0.315 in)

Max.: 100 mm
(3.937 in)

Pressure

25 bar, 40 bar
(362.6 psi, 580.2 psi)

Temperature

Min.: -196 °C
(-321 °F)

Max.: 50 °C
(122 °F)

Description

Ellips series 1700 - pneumatic cryogenic globe Valve High quality stainless steel globe valve for gaseous and liquid media at cryogenic temperatures. The bevel seat allows an optimal flow-rate value. The stainless steel bellow guarantees long service life and high leak-tightness to outside. The valve body is machined from one piece of solid stainless steel. End connections can be supplied in butt-welded execution or according to customer specification. Ellips has a very good ratio of seat diameters to Kv-values. Equipped with STÖHR pneumatic actuator and electro-pneumatic pilot valve. Limit switches and further components are available.
