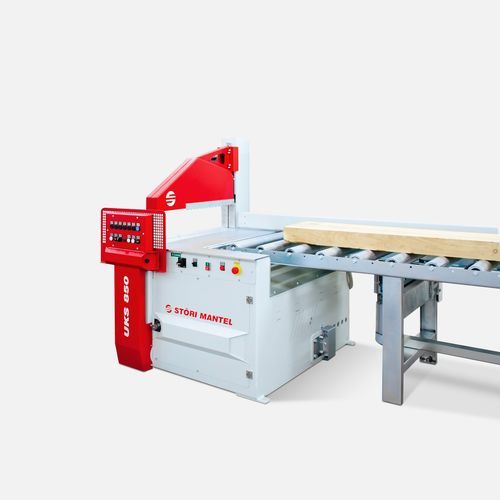

Crosscut sawing machine UKS 850

circularwoodautomatic

These are compact semi-automatic devices designed for shortening both live-edged and straight-edged wood and other materials. UKS cross-cutting saws find their application in the areas of sawmill and furniture production, as well as in the cutting of plastics, thin-walled steel profiles, pipes, and sandwich insulation panels with steel reinforcement. We provide you with a wide range of optional equipment and mechanization for the saw. The UKS saw can be used to shorten various wooden and non-wooden materials to the desired lengths, or alternatively process the raw material differently, depending on the capabilities and parameters of the equipment (for example, manually removing material defects, etc.). The fundamental difference between different types of UKS trimming saws lies in the trajectory of the saw blade movement, which allows cutting different widths of material with the same diameter of the saw blade (see cutting diagram in the "More Information" section). Basic Construction The base of the saw's construction consists of a sturdy welded frame, fitted with a pivoting arm with a saw unit. The movement of the arm with the saw blade is ensured by a pneumatic system with smoothly adjustable tool feed speed into the cut. Trimming saws are manufactured in a LEFT variant (material flow from right to left). However, the placement of the saw depends on the available space. Manipulation of the material and its measurement are facilitated by various optional conveyors, which can be driven or non-driven with measuring elements in several designs (see more in the "Optional Equipment" section).
