Camera detector PSA25

radarmonitoringfor the automotive industry

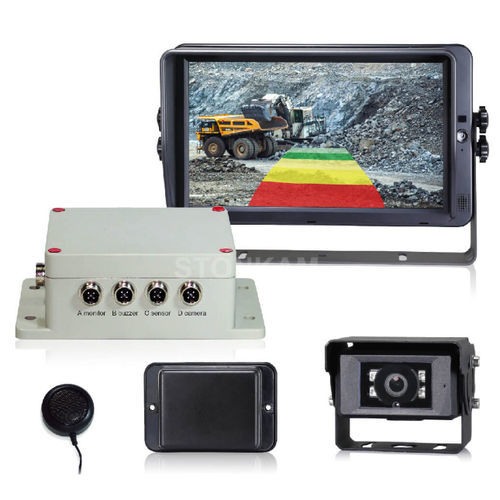

STONKAM® 1080P 24GHz Radar Detection System is built on millimeter wave technology allowing for good performance in all weathers. It’s highly helpful for obstacle detection when reverse or park and widely used in large vehicles such as trucks, construction machinery, and agricultural machine. More radar alarm systems are available here. - This radar detection kit includes a 1080P camera (FHD-639) and a monitor (HD-261D) - Support high definition 1080P input and output - 24GHz Millimeter-wave Radar technology - Detection Range: 0.1~20m (0.33ft—65.6ft) - CVBS and AHD Image alarm overlapping - Detection distance and alarm mode can be set on the computer by connecting the control box to computer with a USB to UART conversion cable - Support Wi-Fi connection, users can configure the detection distance and alarm mode by computer or mobile phone (optional) - All-weather operations; work 24 hours Specification Frequency - 24.00 ~ 24.20GHz Transmitter Type - FMCW Power Supply - 10 to 32V DC Detection Range - Detection length limit 0.1~20m, up to 5 detection zones(distance of each zone can be configured ) Detection Zone Visualization - Green (furthest), Yellow(middle), Red (closest) Detection Tolerance - +/- 30 cm Antenna Beam Angle - 100° (Horizontal), 40° (Vertical)
