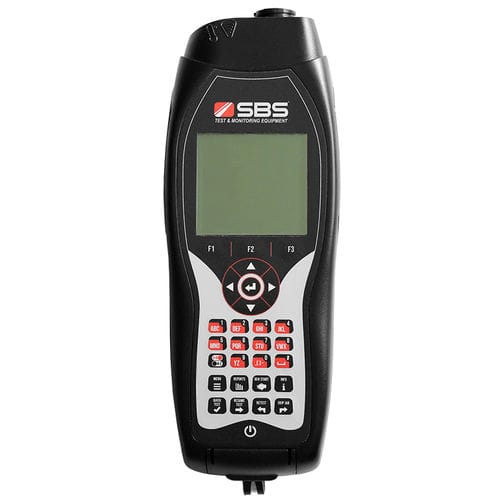

Voltage tester SBS-6800

conductancebatteryportable

Utilizing pin probes or clamp probes, take cell or battery readings in seconds with the SBS-6800 multipurpose conductance and voltage tester. The SBS-6800 can be programmed with site names, battery details and pass/warning/fail alarm set points for ohmic measurements (pass/fail for voltage). All data is retained in the tester’s internal memory and can be printed directly to the optional printer, or exported for creating reports or trending. No software program is required. Using the principle of conductance, the SBS-6800 measures the battery or cell’s ability to pass electricity through it. Conductance testing is standard throughout the telecommunications industry and is an accepted “ohmic measurement” for NERC Compliance and IEEE recommended maintenance practices. • Versatile: tests flooded lead acid, VRLA, NiCd, Li-ion and NiMH batteries and strings • Automatically measures and stores data within seconds • Voltage testing range of 1.0–20.0 Vdc • IEC 6101-1 CAT II 300V safety standard • Swappable 7.2Vdc NiMH battery with in-unit charging cord • Large 2.97" x 2.81" LCD with LED backlit display • Engine start / CCA test capabilities
