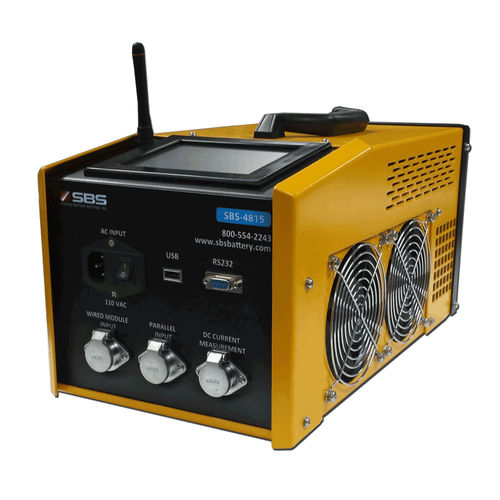

Portable load bank SBS-4815CT Capacity Discharger

constant currentfor battery

Battery Discharger / Capacity Tester for 20–60 Vdc Battery Systems The SBS-4815CT is a fully programmable and portable constant current load bank including individual cell monitoring wireless modules with detailed data acquisition, display and reporting capabilities. Built-in memory continuously records discharge data including: overall system voltage, current and individual cell voltages (when modules are installed). Parallel Operation Alone the SBS-4815CT has a 0–150 Amp constant current draw range. However it is possible to parallel additional load banks of the same voltage range with the SBS-4815CT to increase current draw. With the optional P/N 8400-600A DC clamp the user can discharge up to 750 Amps and the SBS-4815CT will monitor the total DC current being drawn by up to three load banks in parallel. Application Information Benefits •Can be powered from DC or AC power supply •Weighs only 21 lb.; designed for portability •Can be slaved with other load banks of the same voltage to increase discharge current Features •Voltage and current range: 20–60 Vdc / 0–150 Amps •5.7" LCD touch screen •4 adjustable stop points and multiple alarm designs to control the process intelligently •Wireless modules that measure and record individual cell voltages during testing •View test data in real time on screen or with computer via RS232 •Download data after discharge to USB drive •Computer software for capacity evaluation and report generation Analytical Software and Internal Memory •Powerful analytical software calculates test results and reports cell/battery conditions and capacity •Software interface displays detailed graphs and charts
