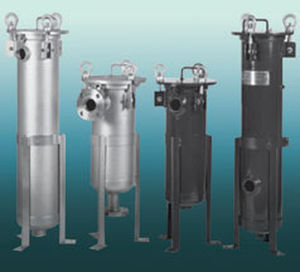

Single-bag filter housing SRHD

for liquidsstainless steel

The SRHD Series filter bag vessels are designed to handle your most difficult fluid filtration requirements. Our SRHD is made from heavy duty steel components and to strict quality standards, which allows our clients the ability to change from a non-stamped to an ASME UM stamped vessel at a nominal cost. The SRHD series incorporates our unique radial seal design that provides a hermetic seal between the basket and vessel. Utilizing a radial seal with our retainer baskets eliminates “basket rocking”, which causes bypass as the basket becomes out of round. “Basket rocking” is common in low cost bag vessels that do not incorporate an O-ring seal and can cause unfiltered liquid bypass. The Strainrite Companies’ SRHD, with a radial seal, has a machined surface that produces a positive seal to eliminate bypass. SRHD vessels incorporate a combination of unique qualities that places us at the top of single bag vessel design. Standard features include: a recessed basket, volume displacer welded to top cover, and a 304 stainless steel wire mesh basket to name a few. Our standard wire mesh baskets increase available filtration surface area up to 30% compared to cheaper perforated retainer baskets. Increasing effective filtration surface area reduces bag consumption and extends production run times decreasing labor cost. Features: Hermetic radial o-ring sealed retainer basket Eliminates potential for bypass and “basket rocking” Adjustable tri-pod standOffers flexibility when plumbing into an existing line Built-in volume displacer in cover Inlet/outlet orientation:Side-in/Bottom-out or Side-in/Side-out (optional) Low pressure drop Positive cover seal
