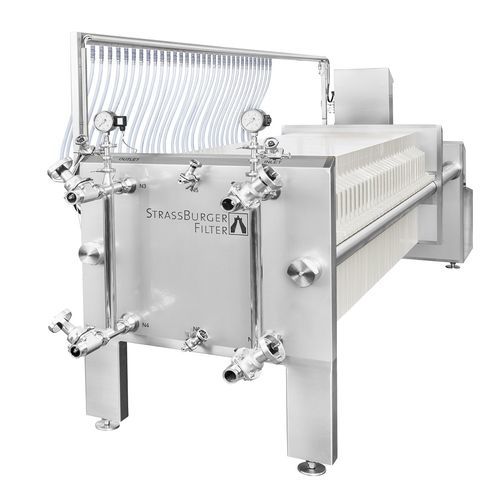

Membrane filter press Hermetix PM

automaticdryfor pharmaceutical products

The HERMETIX PM essentially consists of the filter frame of the HERMETIX P equipped with membrane plate technology. The HERMETIX PM also has a device for applying compressed air to the individual membrane plates. The membrane plate technology ensures a considerably higher product yield due to the mechanical dehumidification of the filter cake. In addition, processing is more gentle on the product than by blowing the filter cake dry with gas. It is suitable for filter sheets as well as filter cloths. The possibility of optimal cake washing ensures maximum product yield. A package consisting of membrane plates and frames only can be put together or alternately with filter plates and frames as a more cost-effective variant. Filter elements Flexible, impermeable membrane on a carrier plate with filtering properties Drip-tight design due to circumferential O-ring Suitable for filter sheets as well as filter cloths CIP-compatible without filter medium due to circumferential O-ring Nub drainage for improved liquid distribution Highest surface quality for the pharmaceutical sector Membrane plates are available in various formats: from 400 x 400 mm to 1200 x 1200 mm
