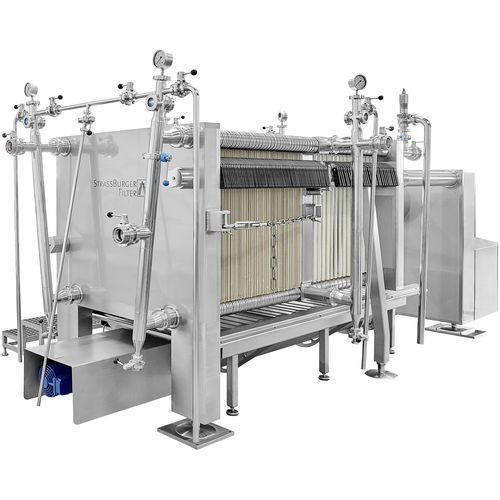

Plate and frame filter press SF 1000 B

automaticfor winebeverage

The four-eye design of the filter plate in this classic sheet filter ensures ideal inflow behavior and thus efficient use of the filter sheets. The SF 1000 B is used as a sheet filter or a diatomaceous earth (DE) filter, especially for beer filtration. The SF 1000 B provides excellent filtration results and offers great flexibility due to the range of SF deep-bed filter sheets. With the diverter chamber, multi-stage filtration (double filtration/combined filter) is possible without any problems The SF 1000 B has a plate size of 1,000 x 1,000 mm and a stationary cantilever filter frame on height-adjustable leveling feet. The filter cover, crosshead, struts, and hydraulic cylinder are all made of high-quality solid steel, encased in stainless steel. The SF 1000 B features service walks sectioned on both sides. Depending on the frame length, support brackets are used to relieve the load on the struts. The suspensions on the filter elements or the struts are placed lower on the operating side to make it easier to insert filter sheets and clean the system. This also helps to avoid using the wrong sides when inserting the filter plates. Pressing device The hydraulic part and electronic elements are splash-proof and integrated in a housing below the crosshead. The hydraulic cylinder is structurally installed in such a manner that the loose cover is not subjected to additional weight. During the filtration process, the pressure is automatically re-adjusted to the respective contact pressure. Fittings Removable pipers, optionally as an inlet and outlet with an inclined piston valve, disc valve, or angle valve
