The DOS 500 dosing unit for diatomaceous earth (DE) and other filter aids ensures uniform mixing and precisely adjustable dosing of the filter aid. Thanks to the frequency-controlled agitator, the formation of foam can be prevented (optional). With the help of DE filtration, wine can be filtered in a chamber filter press and beer in plate filters and frame filters, for example.
Uniform mixing of the filter aid
Powerful dosing pump
Excellent filter cake precoating
High filtrate performance even with difficult turbidities

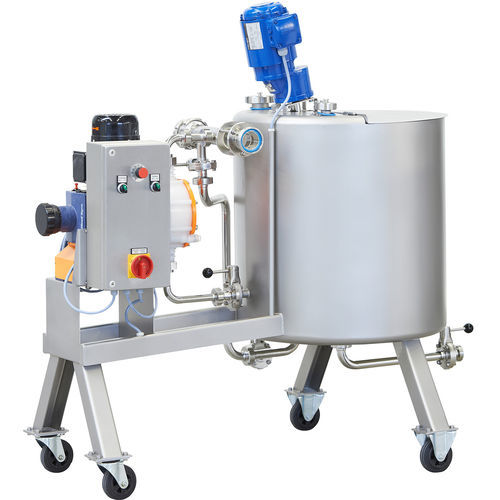

Mounted on a mobile frame, there is the dosing and mixing tank with a hinged tank cover and agitator featuring a gear motor as well as a continuously variable dosing pump, designed as a piston diaphragm pump featuring an upstream membrane. The agitator gear unit featuring a magnetic rotating field drive allows the vessel to be opened and filled during operation.
Mixing tank and all supporting/product-contacting parts in stainless steel
Larger units also available on request, even stationary
Metering pump with either a plastic or stainless steel pump head
For the brewery version (B): Mixing tank with additional drain, filling line in stainless steel
Optionally available with stainless steel head in a high-pressure version with a piston diaphragm pump
Larger tanks and metering pumps on request
