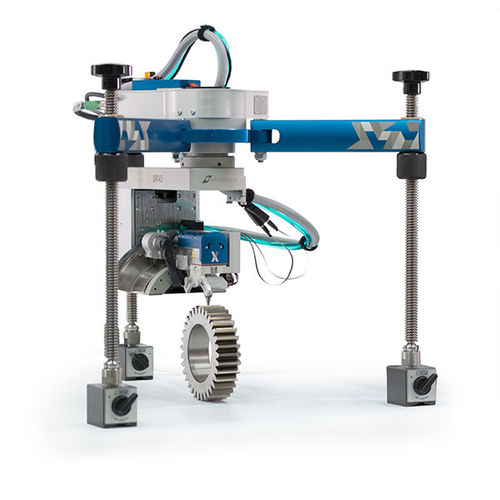

X-ray diffractometer Xstress DR45

laboratory

Newest generation of X-ray diffractometers delivering high quality data faster than ever before. For manufacturing industry • Fast measurement, suitable even for production area • Easy to use software for operators • Templates for frequent measurements For laboratory use • Follows the standard EN15305 • Multiple calculations available, includes features such as linear and elliptical regression, Dölle-Hauk, stress tensor and principal stresses. Peak fitting functions include cross-correlation, parabolic, Gauss, Lorentz, modified Lorentz, intermediate Lorentz, Pearson VII, Pseudo-Voigt, Voigt, centroid, centered centroid, sliding center of gravity, and midchord • X-ray diffractometer design enables measuring a great variation of different sized and shaped parts • Effortless and fast X-ray tube change For field use • Quick assembly, ready to use in 10 minutes • Robust design in diffractometer and Xstress MU • Diffractometer design enables measurement on uneven surfaces; with magnetic legs diffractometer can be fixed to different positions. Xstress DR45, diffractometer • Rotation +- 180° • Tilt +-45° • Standard measurement distance 45mm • Magnetic legs with height adjustment X-ray tube: • Chromium (Cr) with HV cable • Max. output 30 kV/9 mA/270 W • Quick change Detector set for Xstress DR45 • 2D detectors, 2 pieces • Quantum efficiency >90%, at 5 keV • 256 x 256 pixels • pixel size 55 µm • No dark current
