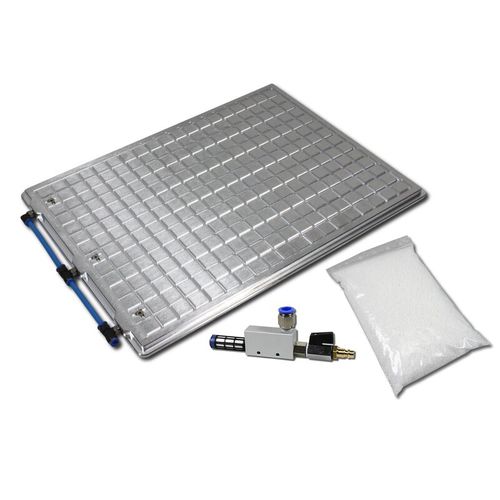

Grid vacuum table VT4030R

Dimensions: 412 x 312 x 12 mm Clamping area: 400 x 300 mm Grid: 20 mm Overview of features: Clamp and mill workpieces quickly and easily. Face milled from both sides. Ready to use. Just mount, connect the vacuum and you´re ready to go. Coolant ready. Easy to use. Technical data vacuum table: Dimensions: 412 x 312 x 12 mm Clamping Area: 400 x 300 mm Grid: 20 mm Vacuum points: 3 Material: Aluminum 6 mm surrounding clamping base Technical Data VT-VE1.5: 93% vacuum 920 mbar 3,8 m³/air flow (high volume) 100 lpm consumption Best operating pressure 5 Bar The compressed air should be clean and dry Hose conection 6mm
